Lowest core losses (MnZn).
High saturation current up to 60 A.
Extremely low DCR.
Magnetically shielded.
DCR tolerance ± 7%.
Operating temperature: –35 °C to +125 °C.
Recommended solder profile: Reflow.
Applications:
Multiphase switching regulator.
Power PC.
CPU/RAM power supply.
Filter.
As a trusted custom inductor manufacturer, we provide high-quality electronic component wholesale to meet customer's needs.

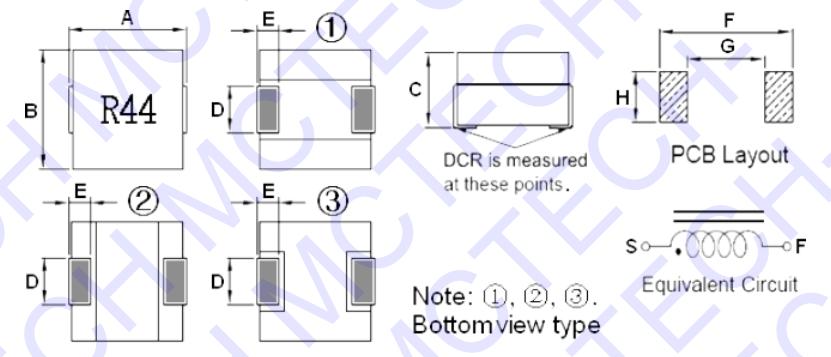

| Part No. | A(Max) | B(Max) | C(Max) | D | E | F(Ref.) | G(Ref.) | H(Ref.) | BV type |
| ASMG070705 | 7.2 | 7 | 5.1 | 2.5±0.2 | 1.3±0.2 | 8 | 4 | 3 | ① |
| ASMG070707 | 7.5 | 7.5 | 7.5 | 2.0±0.2 | 1.8±0.2 | 8 | 3 | 3 | ① |
| ASMG100705(R29) | 10.2 | 7 | 5.1 | 2.7±0.15 | 1.2±0.2 | 10.5 | 6 | 3.5 | ① |
| ASMG100705(R32) | 10.2 | 7 | 5 | 2.5Ref. | 1.52Ref. | 10.5 | 6 | 3.5 | ① |
| ASMG100707 | 11 | 7.5 | 7 | 1.6±0.2 | 2.6±0.3 | 11 | 4.3 | 2.5 | ① |
| ASMG100775 | 11 | 7.5 | 7.5 | 1.6±0.2 | 2.6±0.3 | 11 | 4.3 | 2.5 | ① |
| ASMG100865 | 10.42 | 8 | 6.5 | 2.3±0.2 | 2.54±0.3 | 11 | 4.3 | 3.5 | ① |
| ASMG100875 | 10.5 | 8 | 7.5 | 1.5-1.8 | 1.5-3.2 | 12 | 2 | 3.2 | ① |
| ASMG100808 | 11 | 8 | 8.5 | 1.55±0.2 | 2.6±0.3 | 11.5 | 4.5 | 2.5 | ① |
| ASMG101005 | 10.5 | 10.1 | 5.3 | 2.5±0.2 | 2.0±0.2 | 11 | 5 | 3.5 | ① |
| ASMG110707 | 12 | 7.6 | 7.2 | 1.9±0.2 | 3.2±0.3 | 12 | 4.5 | 3 | ① |
| ASMG111109 | 11.7 | 11.5 | 9.2 | 2.2±0.2 | 3.2±0.5 | 12 | 4 | 3.5 | ① |
| ASMG131305 | 13.5 | 13.2 | 5.3 | 5.0±0.2 | 2.0±0.2 | 14 | 8 | 6 | ① |
| ASMG131308 | 13.5 | 13.2 | 8 | 5.0±0.2 | 2.54±0.3 | 14 | 7 | 7.5 | ① |
| ASMG131309 | 14.5 | 13.3 | 9.5 | 3.0±0.2 | 2.4±0.2 | 14.8 | 8.5 | 4 | ① |

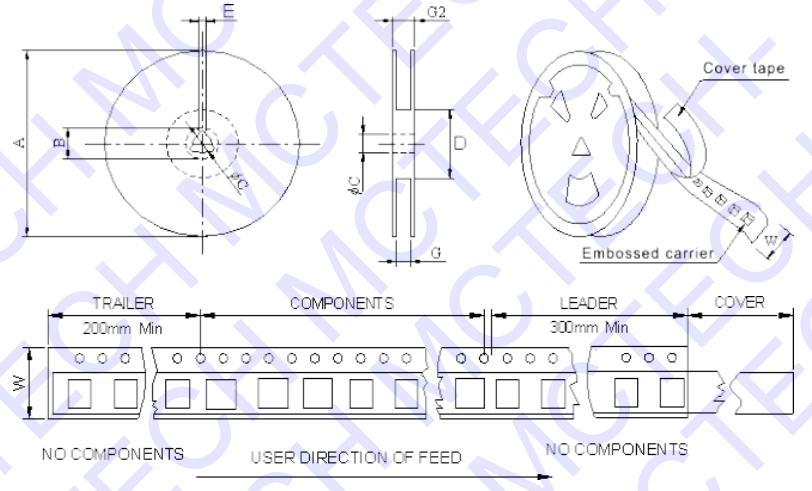

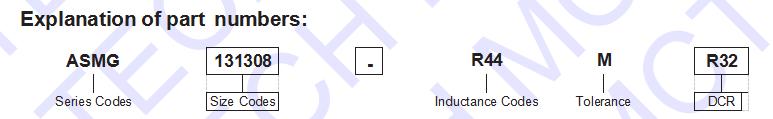

| Series Name | Qty. per Reel | Reel Size | Inner Box(mm) | Outer Box(mm) | |||
| A(mm) | W(mm) | ||||||
| ASMG070705 | 1000 | 330 | 24 | 2000pcs | 2Reel/Box | 8000pcs | 4inner box/Box |
| ASMG070707 | 500 | 330 | 24 | 1000pcs | 2Reel/Box | 4000pcs | 4inner box/Box |
| ASMG100705(R29) | 1000 | 330 | 24 | 2000pcs | 2Reel/Box | 8000pcs | 4inner box/Box |
| ASMG100705(R32) | 1000 | 330 | 24 | 2000pcs | 2Reel/Box | 8000pcs | 4inner box/Box |
| ASMG100707 | 640 | 330 | 24 | 1280pcs | 2Reel/Box | 5120pcs | 4inner box/Box |
| ASMG100775 | 640 | 330 | 24 | 1280pcs | 2Reel/Box | 5120pcs | 4inner box/Box |
| ASMG100865 | 600 | 330 | 24 | 1200pcs | 2Reel/Box | 1800pcs | 4inner box/Box |
| ASMG100875 | 800 | 330 | 24 | 1600pcs | 2Reel/Box | 6400pcs | 4inner box/Box |
| ASMG100808 | 450 | 330 | 24 | 900pcs | 2Reel/Box | 3600pcs | 4inner box/Box |
| ASMG101005 | 700 | 330 | 24 | 1400pcs | 2Reel/Box | 5600pcs | 4inner box/Box |
| ASMG110707 | 500 | 330 | 24 | 1000pcs | 2Reel/Box | 4000pcs | 4inner box/Box |
| ASMG111109 | 300 | 330 | 24 | 600pcs | 2Reel/Box | 2400pcs | 4inner box/Box |
| ASMG131305 | 500 | 330 | 24 | 1000pcs | 2Reel/Box | 4000pcs | 4inner box/Box |
| ASMG131308 | 450 | 330 | 24 | 900pcs | 2Reel/Box | 3600pcs | 4inner box/Box |
| ASMG131309 | 300 | 330 | 24 | 600pcs | 2Reel/Box | 2400pcs | 4inner box/Box |
| PART NO. | L(0A) | Irms (Amperes) | Isat @25校 (Amperes) | Isat @125校 (Amperes) | DCR @25℃ (mΩ) | |
| ASMG070705-R10L | 0.10±15% | 30 | 50 | 40 | 0.26±7% |
|
| ASMG070705-R15L | 0.15±15% | 30 | 33 | 25 | 0.26±7% |
|
| ASMG070705-R20L | 0.20±15% | 30 | 22 | 15 | 0.26±7% |
|
| ASMG070707-R12L | 0.12±15% | 35 | 50 | 40 | 0.29±10% |
|
| ASMG070707-R16L | 0.16±15% | 35 | 38 | 27 | 0.29±10% |
|
| ASMG070707-R22L | 0.22±15% | 35 | 27 | 20 | 0.29±10% |
|
| ASMG100705-R12L | 0.12±15% | 40 | 60 | 55 | 0.29±7% |
|
| ASMG100705-R15L | 0.15±15% | 40 | 40 | 35 | 0.29±7% |
|
| ASMG100705-R20L | 0.20±15% | 40 | 27 | 25 | 0.29±7% |
|
| ASMG100707-R12L | 0.12±15% | 37 | 80 | 70 | 0.37±7% |
|
| ASMG100707-R18L | 0.18±15% | 37 | 50 | 45 | 0.37±7% |
|
| ASMG100707-R22L | 0.22±15% | 37 | 40 | 35 | 0.37±7% |
|
| ASMG100707-R33L | 0.33±15% | 37 | 28 | 20 | 0.37±7% |
|
| ASMG100707-R40L | 0.40±15% | 37 | 21 | 16 | 0.37±7% |
|
| ASMG100775-R15L | 0.15±15% | 55A | 70 | 60 | 0.29±7% |
|
| ASMG100775-R20L | 0.20±15% | 55A | 55 | 45 | 0.29±7% |
|
| ASMG100775-R25L | 0.25±15% | 55A | 40 | 32 | 0.29±7% |
|
| ASMG100775-R30L | 0.30±15% | 55A | 34 | 30 | 0.29±7% |
|
| ASMG100775-R40L | 0.40±15% | 55A | 23 | 18 | 0.29±7% |
|
| ASMG100865-R12K | 0.12±10% | 40 | 74 | 63 | 0.48±8% |
|
| ASMG100865-R14K | 0.14±10% | 40 | 66 | 56 | 0.48±8% |
|
| ASMG100865-R17K | 0.17±10% | 40 | 55 | 48 | 0.48±8% |
|
| ASMG100865-R22K | 0.215±10% | 40 | 43 | 35 | 0.48±8% |
|
| ASMG100865-R30L | 0.30±15% | 40 | 30 | 25 | 0.48±8% |
|
| ASMG100875-R23M | 0.23±20% | 48 | 50 | 40 | 0.29±10% |
|
| ASMG100808-R15L | 0.15±15% | 40 | 72 | 65 | 0.50±7% |
|
| ASMG100808-R18L | 0.18±15% | 40 | 60 | 50 | 0.50±7% |
|
| ASMG100808-R23L | 0.23±15% | 40 | 52 | 40 | 0.50±7% |
|
| ASMG100808-R30L | 0.30±15% | 40 | 40 | 28 | 0.50±7% |
|
| ASMG100808-R45L | 0.45±15% | 40 | 20 | 15 | 0.50±7% |
|
| ASMG101005-R20L | 0.20±15% | 45 | 35 | 30 | 0.26±9% |
|
| ASMG101005-R25L | 0.25±15% | 45 | 28 | 22 | 0.26±9% |
|
| ASMG101005-R30L | 0.30±15% | 45 | 23 | 20 | 0.26±9% |
|
| ASMG110707-R15L | 0.15±15% | 44 | 65 | 50 | 0.29±7% |
|
| ASMG110707-R18L | 0.18±15% | 44 | 58 | 40 | 0.29±7% |
|
| ASMG110707-R22L | 0.22±15% | 44 | 45 | 35 | 0.29±7% |
|
| ASMG110707-R30L | 0.30±15% | 44 | 30 | 23 | 0.29±7% |
|
| ASMG110707-R40L | 0.40±15% | 44 | 23 | 16 | 0.29±7% |
|
| ASMG111109-R23L | 0.23±15% | 40 | 60 | 50 | 0.30±7% |
|
| ASMG111109-R32L | 0.32±15% | 40 | 45 | 40 | 0.30±7% |
|
| ASMG111109-R38L | 0.38±15% | 40 | 40 | 30 | 0.30±7% |
|
| ASMG111109-R46L | 0.46±15% | 40 | 32 | 22 | 0.30±7% |
|
| ASMG111109-R54L | 0.54±15% | 40 | 26 | 18 | 0.30±7% |
|
| PART NO. | L(0A) | Irms (Amperes) | Isat @25校 (Amperes) | Isat @125校 (Amperes) | DCR @25℃ (mΩ) | |
| ASMG131305-R22L | 0.22±15% | 50 | 40 | 35 | 0.155±10% |
|
| ASMG131305-R28L | 0.28±15% | 50 | 30 | 18 | 0.155±10% |
|
| ASMG131305-R31L | 0.31±15% | 50 | 24 | 15 | 0.155±10% |
|
| ASMG131305-R40L | 0.40±15% | 50 | 18 | 13 | 0.155±10% |
|
| ASMG131305-R52L | 0.52±15% | 50 | 13 | 9 | 0.155±10% |
|
| ASMG131308-R21L | 0.21±15% | 45 | 71 | 55 | 0.32±9.4% |
|
| ASMG131308-R26L | 0.26±15% | 45 | 60 | 45 | 0.32±9.4% |
|
| ASMG131308-R32L | 0.32±15% | 45 | 50 | 35 | 0.32±9.4% |
|
| ASMG131308-R44L | 0.44±15% | 45 | 35 | 25 | 0.32±9.4% |
|
| ASMG131308-R50L | 0.50±15% | 45 | 28 | 23 | 0.32±9.4% |
|
| ASMG131309-R30L | 0.30±15% | 50 | 60 | 50 | 0.25±7% |
|
| ASMG131309-R36L | 0.36±15% | 50 | 52 | 40 | 0.25±7% |
|
| ASMG131309-R45L | 0.45±15% | 50 | 43 | 35 | 0.25±7% |
|
| ASMG131309-R53L | 0.53±15% | 50 | 34 | 20 | 0.25±7% |
|
| ASMG131309-R68L | 0.68±15% | 50 | 24 | 18 | 0.25±7% |
|
