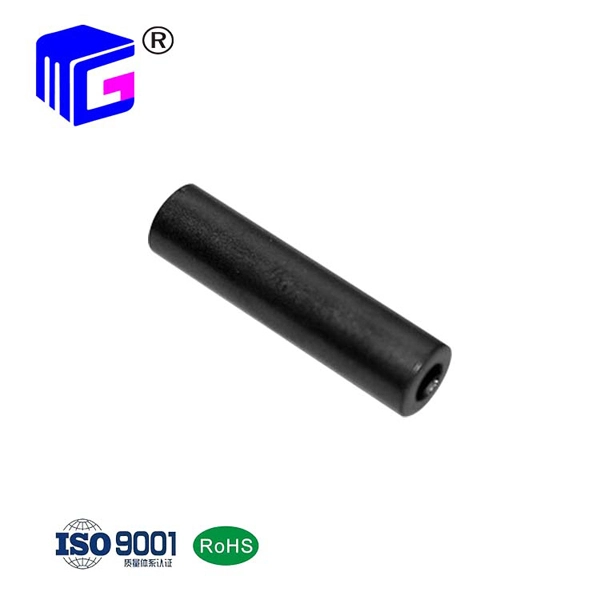

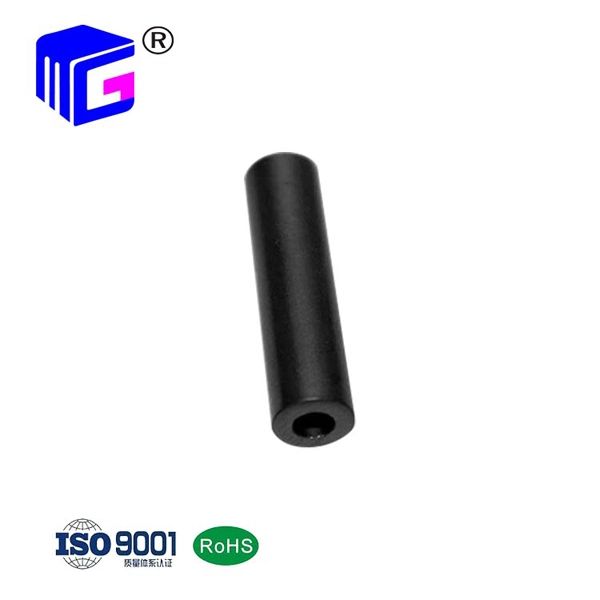

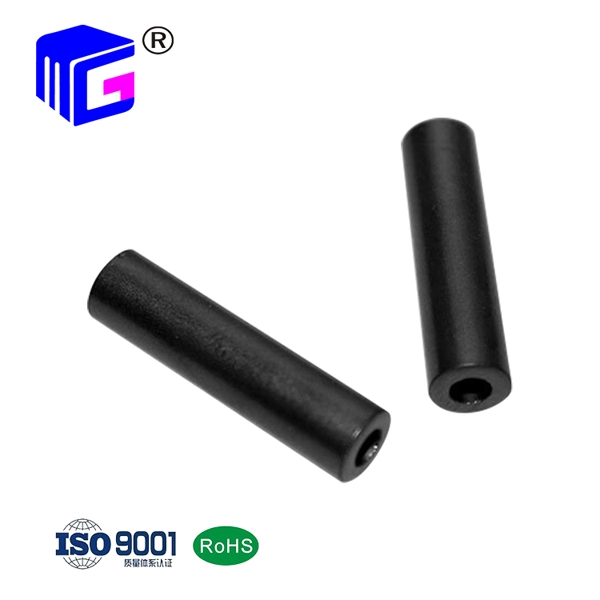

Product Model: MFB - 31 - 0202
MFB: Model code
31: Material number
0202: Size code
As one of the reputable magnetic core manufacturers, we provide the high-quality electronic component wholesale to meet customers' needs. As technology advances, the future of magnetic core material looks promising. Innovations in magnetic cores, such as iron powder core magnetic rings and W material toroids, are paving the way for more efficient designs. Stay ahead of the curve by exploring these exciting developments in magnetic core technology.
| Material: Ferrite | AL value test condition: nH/N² @10KHz | |||||
| Material Number: | 43 | 61 | 67 | 73 | 75 | 77 |
| Permeability / µi | 800 | 125 | 40 | 2500 | 5000 | 2000 |
| AL Tolerance (%) | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% |
43 Material Round Cable Beads: The material is used for EMI/RFI suppression in the 20 MHz to 250 MHz range
61 Material Round Cable Beads: The material is designed for inductive applications up to 25mhz and also suppresses noise frequencies from 200MHz to 1000 MHz.
67 Material Round Cable Beads: The Material is for high Q inductors up to 50 MHz. Suppresses frequencies above 1000 MHz.
73 Material Beads on Leads: Frequency range<50 MHz
75 Material Small Ferrite Shielding Beads: The material attenuates extremely well between 0.5 MHz and 20 MHz.
77 Material Round Cable Beads: The material is used in the form of ferrite toroidal coils for transformers, inductors and RF interference suppression.
| Product Number | Outer Diameter OD(mm) | The Inside Diameter of ID(mm) | High HT(mm) | Magnetic Permeability (μi) | Inductance nH/N² | Z(Ω) 200 KHz | Z(Ω) 500 KHz | Z(Ω) 1 MHz | Z(Ω) 2 MHz | Z(Ω) 5 MHz | Z(Ω) 10 MHz | Z(Ω) 25 MHz | Z(Ω) 100 MHz | Z(Ω) 250 MHz | Z(Ω) 500 MHz | Z(Ω) 1 GHz |
| MFB-31-0202 | 6.35±0.15 | 2.95±0.4 | 25.4±0.75 | 1500 | 5281 | 30 | 110 | 162 | 265 | 300 | ||||||
| MFB-31-1020 | 26.0±0.75 | 12.8±0.25 | 28.6±0.8 | 1500 | 6000 | 38 | 110 | 165 | 260 | 315 | ||||||
| MFB-31-1030 | 31.55±0.75 | 19.55±0.5 | 50.8±1.0 | 1500 | 7260 | 57 | 150 | 215 | 350 | 410 | ||||||
| MFB-31-1122 | 28.6±0.6 | 13.8±0.4 | 28.6±0.8 | 1500 | 6178 | 42 | 125 | 180 | 285 | 315 | ||||||
| MFB-31-4851 | 12.3±0.4 | 5.0±0.25 | 12.7±0.4 | 1500 | 3375 | 20 | 63 | 95 | 155 | 180 | ||||||
| MFB-31-4852 | 12.3±0.4 | 5.0±0.25 | 25.4±0.8 | 1500 | 6750 | 37 | 130 | 192 | 320 | 355 | ||||||
| MFB-31-5621 | 14.3±0.45 | 6.35±0.25 | 28.6±0.75 | 1500 | 6913 | 45 | 135 | 200 | 322 | 355 | ||||||
| MFB-31-5623 | 14.3±0.45 | 6.35±0.25 | 13.8±0.75 | 1500 | 3271 | 20 | 60 | 88 | 135 | 150 | ||||||
| MFB-31-6251 | 16.25±0.75 | 7.9±0.25 | 14.3±0.35 | 1500 | 2975 | 12 | 57 | 80 | 125 | 145 | ||||||
| MFB-31-6252 | 16.25±0.75 | 7.92±0.25 | 28.6±0.75 | 1500 | 5930 | 35 | 117 | 170 | 260 | 300 | ||||||
| MFB-31-6873 | 17.45±0.4 | 9.5±0.3 | 28.6±0.75 | 1500 | 5189 | 31 | 100 | 145 | 225 | 265 | ||||||
| MFB-31-7351 | 18.7±0.5 | 10.15±0.25 | 28.6±0.75 | 1500 | 5192 | 45 | 105 | 150 | 221 | 255 | ||||||
| MFB-31-11421 | 29.0±0.75 | 19.0±0.5 | 13.85±0.4 | 1500 | 1750 | 12 | 35 | 52 | 85 | 105 | ||||||
| MFB-31-20003 | 50.8±1.3 | 25.4±0.8 | 38.1±0.8 | 1500 | 7922 | 65 | 155 | 243 | 395 | 405 | ||||||
| MFB-31-24001 | 61.0±1.3 | 35.5±0.9 | 12.7±0.5 | 1500 | 2054 | 10 | 40 | 60 | 110 | 175 | ||||||
| MFB-31-40003 | 101.6±2.6 | 76.2±2.0 | 25.4±0.7 | 1500 | 2100 | 15 | 40 | 70 | 150 | 280 | ||||||
| MFB-43-083 | 5.08Typ. | 2.39Typ. | 11.1Typ. | 850 | 1425±30% | / | 104±20% | / | / | / | ||||||
| MFB-43-101 | 3.5Typ. | 1.3Typ. | 3.25Typ. | 850 | 500 | / | 17 | 25 | 40 | 55 | ||||||
| MFB-43-129C | 5.84Typ. | 3.05Typ. | 6Typ. | 850 | 663±30% | / | / | / | 43±20% | / | ||||||
| MFB-43-201 | 1.93Typ. | 1.09Typ. | 3.8Typ. | 850 | 345 | / | 12 | 15 | 30 | 45 | ||||||
| MFB-43-301 | 3.5Typ. | 1.3Typ. | 6.0Typ. | 800 | 950 | / | 30 | 45 | 60 | 83 | ||||||
| MFB-43-401 | 5.1Typ. | 1.45Typ. | 6.35Typ. | 800 | 1150 | / | 35 | 55 | 82 | 97 | ||||||
| MFB-43-501 | 1.93Typ. | 1.09Typ. | 1.52Typ. | 800 | 135 | / | 6 | 9 | 22 | 33 | ||||||
| MFB-43-0540 | 1.45±0.15 | 0.7±0.1 | 2.31±0.15 | 850 | 210 | / | 8 | 14 | 25 | 35 | ||||||
| MFB-43-701 | 3.5Typ. | 1.3Typ. | 12.7Typ. | 800 | 2000 | / | 60 | 80 | 125 | 148 | ||||||
| MFB-43-801 | 7.5Typ. | 2.25Typ. | 7.54Typ. | 800 | 1380 | / | 42 | 63 | 92 | 110 | ||||||
| MFB-43-1020 | 26.0±0.75 | 12.8±0.25 | 28.6±0.8 | 850 | 3200 | / | 90 | 135 | 205 | 250 | ||||||
| MFB-43-1024 | 26.0±0.75 | 12.7±0.25 | 21.3±0.5 | 850 | 2400 | / | 75 | 110 | 155 | 185 | ||||||
| MFB-43-1030 | 31.0±0.85 | 19.0±0.6 | 50.8±1.0 | 850 | 3950 | / | 125 | 190 | 300 | 430 | ||||||
| MFB-43-1122 | 28.5±0.46 | 13.77±0.25 | 28.58±0.76 | 850 | / | / | / | 160 | 307(229Min) | / | ||||||
| MFB-43-1392 | 3.48±0.2 | 1.65±0.25 | 4.06±0.25 | 850 | 427 | / | 15 | 25 | 35 | 40 | ||||||
| MFB-43-1501 | 3.5Typ. | 1.65Typ. | 3.25Typ. | 850 | 400 | / | 13 | 21 | 35 | 50 | ||||||
| MFB-43-1502 | 25.4±0.65 | 12.7±0.35 | 6.35±0.25 | 850 | 700 | / | 20 | 30 | 50 | 70 | ||||||
| MFB-43-2401 | 9.65Typ. | 5.05Typ. | 5.0Typ. | 800 | 500 | / | 15 | 25 | 43 | 55 | ||||||
| MFB-43-2501 | 6.35Typ. | 3.18Typ. | 12.7Typ. | 800 | 1400 | / | 43 | 70 | 100 | 110 | ||||||
| MFB-43-3751 | 9.5Typ. | 4.5Typ. | 6.35Typ. | 800 | 680 | / | 20 | 35 | 50 | 65 | ||||||
| MFB-43-3755 | 9.5±0.25 | 4.75±0.3 | 19.0±0.75 | 850 | 2000 | / | 65 | 95 | 140 | 165 | ||||||
| MFB-43-4502 | 31.0±0.75 | 19.0±0.5 | 16.3±0.75 | 850 | 1225 | / | 35 | 55 | 85 | 120 | ||||||
| MFB-43-4851 | 12.3±0.4 | 5.0±0.25 | 12.7±0.4 | 850 | 1800 | / | 65 | 90 | 125 | 140 | ||||||
| MFB-43-4852 | 12.3±0.4 | 5.0±0.3 | 25.4±0.8 | 850 | 3600 | / | 95 | 145 | 210 | 245 | ||||||
| MFB-43-5001 | 12.7±0.25 | 7.9±0.25 | 6.35±0.25 | 850 | 480 | / | 20 | 30 | 50 | 57 | ||||||
| MFB-43-5004 | 22.1±0.4 | 13.7±0.3 | 6.35±0.2 | 850 | 480 | / | 17 | 25 | 42 | 60 | ||||||
| MFB-43-5620 | 14.3±0.45 | 6.35±0.25 | 5.3±0.45 | 850 | 650 | / | 21 | 30 | 45 | 53 | ||||||
| MFB-43-5621 | 14.3±0.45 | 6.35±0.3 | 28.6±0.8 | 850 | 3700 | / | 105 | 160 | 230 | 262 | ||||||
| MFB-43-5622 | 14.3±0.45 | 6.35±0.25 | 10.15±0.4 | 850 | 1300 | / | 45 | 68 | 100 | 105 | ||||||
| MFB-43-5623 | 14.3±0.45 | 6.35±0.25 | 13.8±0.75 | 850 | 1700 | / | 48 | 75 | 105 | 121 | ||||||
| MFB-43-5624 | 14.3±0.45 | 7.1±0.25 | 15.25±0.45 | 850 | 1700 | / | 55 | 82 | 115 | 130 | ||||||
| MFB-43-5625 | 14.3±0.45 | 7.25±0.25 | 28.6±0.8 | 850 | 3050 | / | 110 | 160 | 225 | 255 | ||||||
| MFB-43-6251 | 16.25±0.75 | 7.9±0.25 | 14.3±0.35 | 850 | 1550 | / | 48 | 70 | 100 | 115 | ||||||
| MFB-43-6252 | 15.9±0.75 | 7.92±0.25 | 28.6±0.75 | 850 | 3150 | / | 120 | 172 | 240 | 280 | ||||||
| MFB-43-6301 | 9.5Typ. | 4.9Typ. | 10.4Typ. | 800 | 1000 | / | 34 | 53 | 80 | 90 | ||||||
| MFB-43-6353 | 9.5±0.25 | 4.75±0.3 | 10.4±0.25 | 850 | 1100 | / | 40 | 60 | 83 | 100 | ||||||
| MFB-43-6251 | 16.25±0.75 | 7.9±0.25 | 14.3±0.35 | 850 | 1550 | / | 48 | 70 | 100 | 115 | ||||||
| MFB-43-6871 | 17.45±0.4 | 9.5±0.25 | 6.35±0.3 | 850 | 600 | / | 20 | 30 | 44 | 59 | ||||||
| MFB-43-6872 | 17.45±0.4 | 9.5±0.25 | 12.7±0.5 | 850 | 1200 | / | 40 | 60 | 83 | 100 | ||||||
| MFB-43-6873 | 17.45±0.4 | 9.5±0.25 | 28.6±0.75 | 850 | 2740 | / | 83 | 125 | 175 | 200 | ||||||
| MFB-43-7350 | 18.7±0.5 | 10.15±0.25 | 14.65±0.75 | 850 | 1390 | / | 45 | 63 | 87 | 105 | ||||||
| MFB-43-7351 | 18.7±0.5 | 10.15±0.25 | 28.6±0.75 | 850 | 2775 | / | 78 | 120 | 180 | 220 | ||||||
| MFB-43-7351C | 18.7±0.5 | 10.15±0.25 | 28.6±0.75 | 850 | 2775 | / | 78 | 120 | 180 | 220 | ||||||
| MFB-43-7352 | 18.7±0.6 | 10.15±0.4 | 50.8±1.0 | 850 | 4950 | / | 150 | 216 | 385 | 475 | ||||||
| MFB-43-8250 | 21.0±0.4 | 13.2±0.3 | 6.35±0.2 | 850 | 465 | / | 15 | 25 | 40 | 60 | ||||||
| MFB-43-8251 | 21.0±0.4 | 13.2±0.3 | 11.9±0.4 | 850 | 880 | / | 30 | 45 | 80 | 102 | ||||||
| MFB-43-10005 | 25.4±0.60 | 15.5±0.5 | 12.7±0.4 | 850 | 1000 | / | 35 | 55 | 80 | 100 | ||||||
| MFB-43-11420 | 29.0±0.75 | 19.0±0.5 | 7.5±0.25 | 850 | 500 | / | 17 | 25 | 45 | 70 | ||||||
| MFB-43-11421 | 29.0±0.75 | 19.0±0.5 | 13.85±0.4 | 850 | 930 | / | 35 | 50 | 75 | 105 | ||||||
| MFB-43-14001 | 35.5±0.75 | 22.9±0.55 | 12.7±0.5 | 850 | 885 | / | 32 | 50 | 85 | 120 | ||||||
| MFB-43-15401 | 39.1±0.75 | 16.75±0.5 | 22.2±0.8 | 850 | 3013 | / | 110 | 160 | 230 | 265 | ||||||
| MFB-43-20004 | 50.8±1.3 | 25.4±0.8 | 50.8±1.0 | 850 | 5600 | / | 210 | 310 | 455 | 440 | ||||||
| MFB-43-24001 | 61.0±1.3 | 35.5±0.9 | 12.7±0.5 | 850 | 1095 | / | 33 | 55 | 90 | 160 | ||||||
| MFB-46-4852 | 12.3±0.4 | 5.0±0.3 | 25.4±0.8 | / | 2250 | / | 93 | 143 | 213 | 243 | ||||||
| MFB-46-5621 | 14.3Typ. | 6.35Typ. | 28.6Typ. | 500 | 2300 | / | 90 | 134 | 225 | 250 | ||||||
| MFB-46-6873 | 17.45Typ. | 9.5Typ. | 28.6Typ. | 500 | 1700 | / | 72 | 108 | 180 | 225 | ||||||
| MFB-61-101 | 3.5Typ. | 1.3Typ. | 3.25Typ. | 125 | 80 | / | / | / | 30 | 45 | 60 | 95 | ||||
| MFB-61-129 | 5.84Typ. | 3.05Typ. | 6.0Typ. | 125 | 95.5±30% | / | / | / | / | 55±20% | ||||||
| MFB-61-201 | 1.93Typ. | 1.09Typ. | 3.8Typ. | 125 | 54 | / | / | / | 15 | 22 | 31 | |||||
| MFB-61-301 | 3.5Typ. | 1.3Typ. | 6.0Typ. | 125 | 150 | / | / | / | 54 | 80 | 100 | 120 | ||||
| MFB-61-401 | 5.1Typ. | 1.45Typ. | 6.35Typ. | 125 | 185 | / | / | / | 42 | 63 | 80 | 115 | ||||
| MFB-61-701 | 3.5Typ. | 1.3Typ. | 12.7Typ. | 125 | 315 | / | / | / | 120 | 155 | 178 | 185 | ||||
| MFB-61-801 | 7.5Typ. | 2.25Typ. | 7.54Typ | 125 | 215 | / | / | / | 75 | 100 | 120 | 143 | ||||
| MFB-61-1020 | 26.0±0.75 | 12.7±0.25 | 28.6±0.8 | 125 | 505 | / | / | / | 215 | 345 | 480 | 320 | ||||
| MFB-61-1801 | 5.1Typ. | 1.45Typ. | 11.1Typ. | 125 | 325 | / | / | / | 100 | 140 | 167 | 185 | ||||
| MFB-61-2501 | 6.35Typ. | 3.18Typ. | 12.7Typ. | 125 | 220 | / | / | / | 85 | 115 | 135 | 155 | ||||
| MFB-61-3751 | 9.5Typ. | 4.5Typ. | 6.35Typ. | 125 | 105 | / | / | / | 42 | 63 | 80 | 115 | ||||
| MFB-61-4852 | 12.3±0.45 | 5.0±0.25 | 25.4±0.8 | 125 | 560 | / | / | / | 230 | 345 | 450 | 450 | ||||
| MFB-61-5621 | 14.3±0.45 | 6.35±0.25 | 28.6±0.75 | 125 | 576 | / | / | / | 260 | 375 | 435 | 405 | ||||
| MFB-61-5623 | 14.3±0.45 | 6.35±0.35 | 13.8±0.25 | 125 | 273 | / | / | / | 95 | 140 | 180 | 280 | ||||
| MFB-61-6873 | 17.45±0.4 | 9.5±0.25 | 28.6±0.75 | 125 | 432 | / | / | / | 180 | 280 | 412 | 510 | ||||
| MFB-61-7351 | 19.0±0.5 | 10.15±0.25 | 28.6±0.75 | 125 | 432 | / | / | / | / | 191 | 280 | 400 | 535 | |||
| MFB-73-101 | 3.5Typ. | 1.3Typ. | 3.25Typ. | 2500 | 1600（Ref only） | 8 | 19 | 25 | 35 | |||||||
| MFB-73-201 | 1.93Typ. | 1.09Typ. | 3.8Typ. | 2500 | 1000 | 5 | 12 | 18 | 27 | |||||||
| MFB-73-301 | 3.5Typ. | 1.3Typ. | 6.0Typ. | 2500 | 2980 | 15 | 37 | 57 | 63 | |||||||
| MFB-73-501 | 1.93Typ. | 1.09Typ. | 1.52Typ. | 2500 | 430(Ref only) | 2 | 6 | 8 | 12 | |||||||
| MFB-73-801 | 7.5Typ. | 2.25Typ. | 7.54Typ. | 2500 | 4320 | 23 | 55 | 47 | 45 | |||||||
| MFB-73-1801 | 5.1Typ. | 1.45Typ. | 11.1Typ. | 2500 | 6500(Ref only) | 35 | 85 | 95 | 95 | |||||||
| MFB-73-2401 | 9.65Typ. | 5.05Typ. | 5.0Typ. | 2500 | 1585 | 8 | 20 | 20 | 15 | |||||||
| MFB-75-1020 | 26.0Typ. | 12.7Typ. | 28.6Typ. | 5000 | 20000(Ref only) | 30 | 80 | 120 | 70 | 54 | ||||||
| MFB-75-3755 | 9.5Typ. | 5.1Typ. | 19Typ. | 5000 | 11700(Ref only) | 17 | 43 | 68 | 100 | 95 | ||||||
| MFB-75-5621 | 14.3Typ. | 6.35Typ. | 28.6Typ. | 5000 | 23200(Ref only) | 30 | 80 | 130 | 154 | 95 | ||||||
| MFB-75-5623 | 14.3Typ. | 6.35Typ. | 13.8Typ. | 5000 | 10900(Ref only) | 16 | 40 | 58 | 67 | 52 | ||||||
| MFB-75-6873 | 17.45Typ. | 9.5Typ. | 28.6Typ. | 5000 | 17000(Ref only) | 22 | 56 | 102 | 138 | 85 | ||||||
| MFB-75-7351 | 18.7Typ. | 10.15Typ. | 28.6Typ. | 5000 | 17300(Ref only) | 25 | 60 | 92 | 97 | 67 | ||||||
| MFB-75-12200 | 31.0Typ. | 19.0Typ. | 15.0Typ. | 5000 | 7300(Ref only) | 10 | 30 | 43 | 28 | 20 | ||||||
| MFB-75B-101 | 3.5Typ. | 1.3Typ. | 3.25Typ. | 5000 | 3226±30% | 40±20% | ||||||||||
| MFB-75B-129C | 5.84Typ. | 3.05Typ. | 6.0Typ. | 5000 | 3900±30% | 48±20% | ||||||||||
| MFB-75B-227 | 9.5Typ. | 4.75Typ. | 9.5Typ. | 5000 | 6628±30% | 52 | ||||||||||
| MFB-75B-227C | 9.5Typ. | 4.75Typ. | 9.5Typ. | 5000 | 6628±30% | 52 | ||||||||||
| MFB-77-301 | 3.5Typ. | 1.3Typ. | 6.0Typ. | 2000 | 2350(Ref only) | 63 | ||||||||||
| MFB-77-1042 | 26.0Typ. | 12.7Typ. | 21.3Typ. | 2000 | 6000(Ref only) | 52 | 25 | 23 | ||||||||
| MFB-77-6301 | 9.5Typ. | 4.9Typ. | 10.4Typ. | 2000 | 2700(Ref only) | 25 | 40 | 33 | ||||||||
