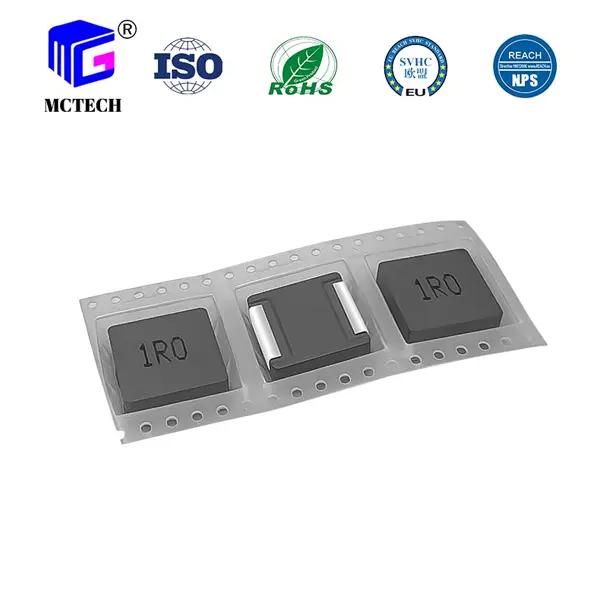

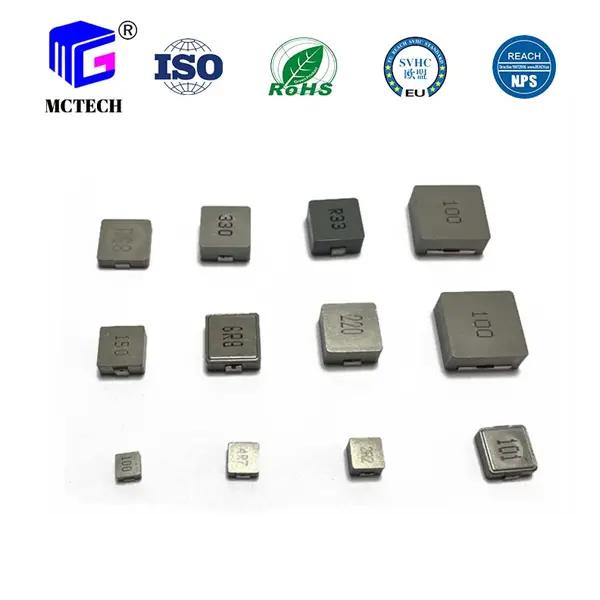

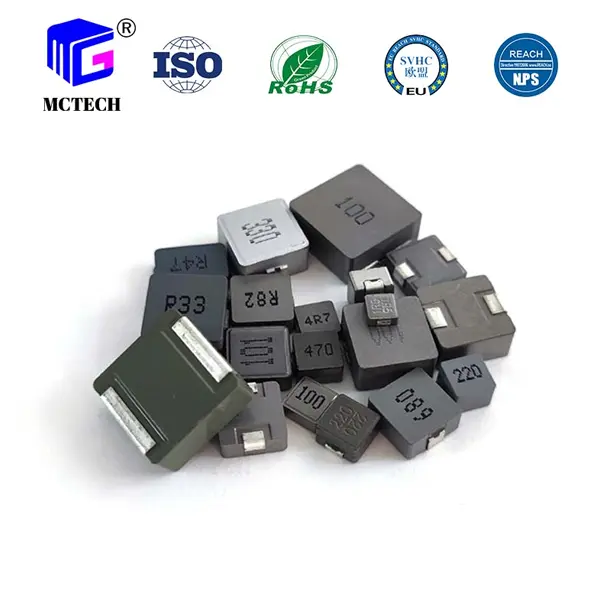

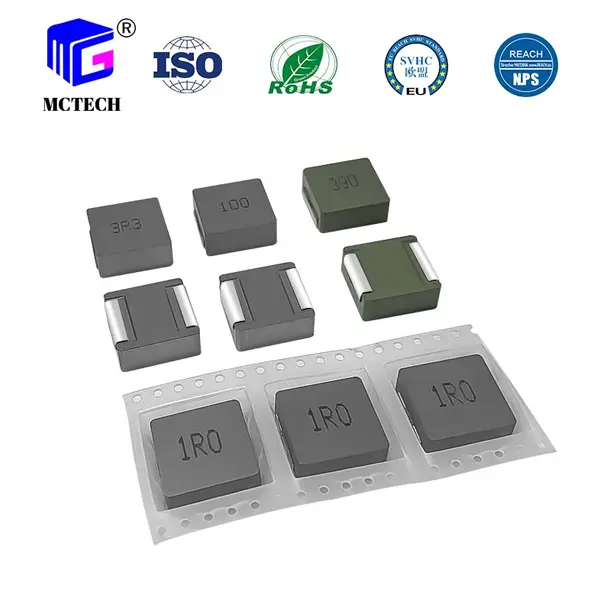

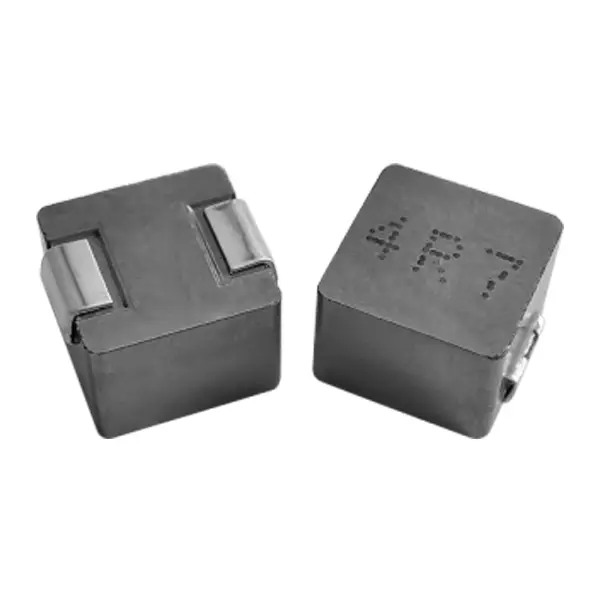

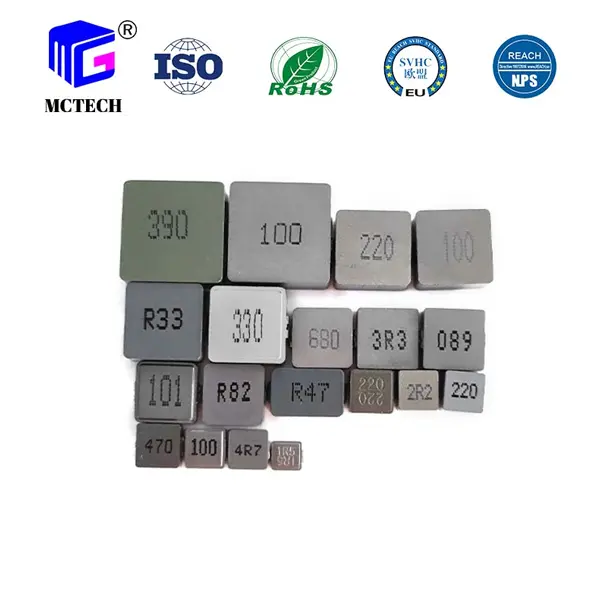

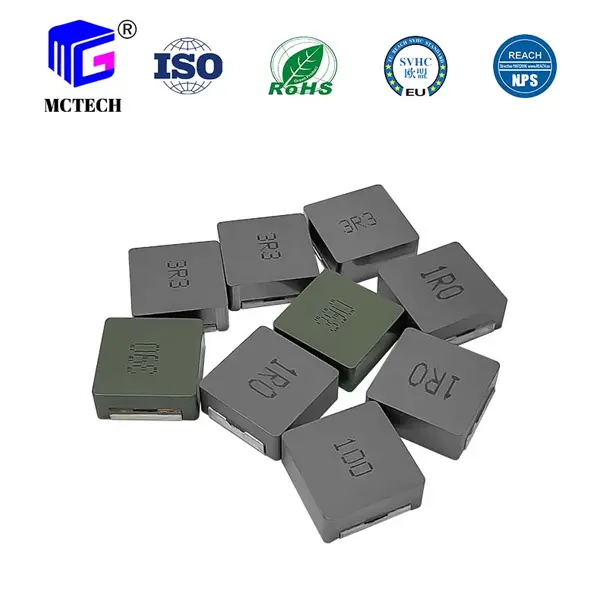

Shielded construction.
Frequency range up to 1.0MHz.
Lowest DCR/μH，in this package size.
Handles high transient current spikes without saturation.
Ultra low buzz noise,due to composite construction.
Compliant to RoHS diretive 2022/95/EC.
As one of the trusted inductor suppliers, we provide high-quality electronic component wholesale to meet customer's needs.

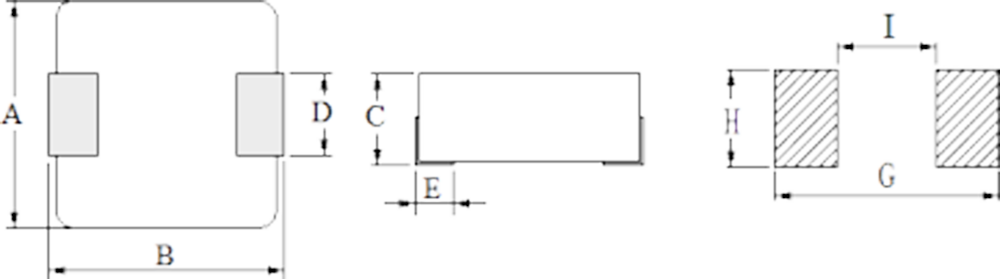

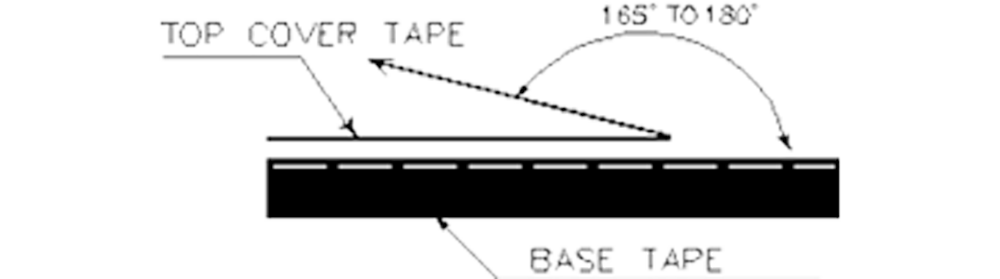

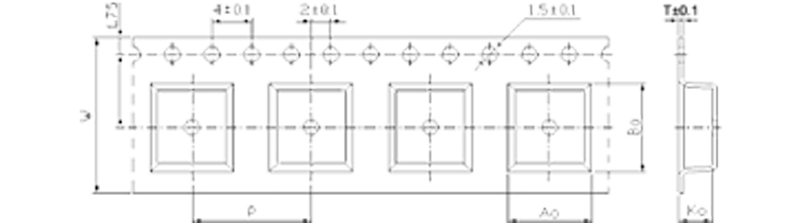

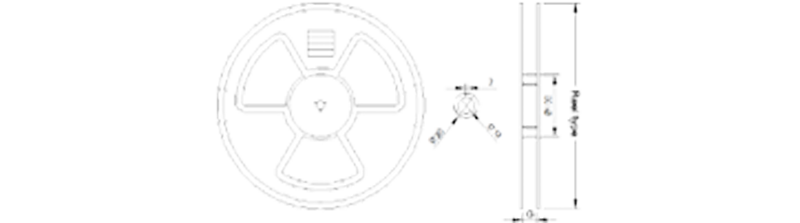

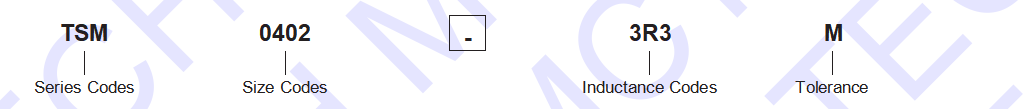

| Series Size | A | B | C | D | E | G | H | I |
| TSM0412 | 4.0±0.3 | 4.5±0.3 | 1.2Max. | 1.5±0.3 | 0.8±0.3 | 5.0Ref | 2.3Ref | 1.7Ref |
| TSM0415 | 4.0±0.3 | 4.5±0.3 | 1.5Max. | 1.5±0.3 | 0.8±0.3 | 5.0Ref | 2.3Ref | 1.7Ref |
| TSM0420 | 4.0±0.3 | 4.5±03 | 2.0Max. | 1.5±0.3 | 0.8±0.3 | 5.0Ref | 2.3Ref | 1.7Ref |
| TSM0520 | 5.2±0.3 | 5.7±0.4 | 2.0Max. | 2.0±0.5 | 1.0±0.5 | 6.0Ref | 2.8Ref | 2.0Ref |
| TSM0530 | 5.2±0.3 | 5.7±0.4 | 3.0Max. | 2.0±0.5 | 1.0±0.5 | 6.0Ref | 2.8Ref | 2.0Ref |
| TSM0550 | 5.2±0.3 | 5.7±0.4 | 5.0Max. | 2.0±0.5 | 1.0±0.5 | 6.0Ref | 2.8Ref | 2.0Ref |
| TSMA612 | 6.0±0.3 | 6.0±0.3 | 1.2Max. | 3.8±0.5 | 1.8±0.5 | 7.2Ref | 4.5Ref | 2.4Ref |
| TSMA630 | 6.0±0.3 | 6.5±05 | 3.0Max. | 2.5±0.5 | 1.3±0.5 | 7.2Ref | 3.2Ref | 3.0Ref |
| TSMA640 | 6.0±0.3 | 6.5±0.5 | 4.0Max. | 2.5±0.5 | 1.3±0.5 | 7.2Ref | 3.2Ref | 3.0Ref |
| TSM0618 | 6.6±0.3 | 7.2±0.5 | 1.8Max. | 3.0±0.5 | 16±0.5 | 8.0Ref | 3.8Ref | 3.7Ref |
| TSM0620 | 6.6±0.3 | 7.2±0.5 | 2.0Max. | 3.0±0.5 | 1.6±0.5 | 8.0Ref | 3.8Ref | 3.7Ref |
| TSM0624 | 6.6±0.3 | 7.2±0.5 | 2.4Max. | 3.0±0.5 | 1.6±0.5 | 8.0Ref | 3.8Ref | 3.7Ref |
| TSM0630 | 6.6±0.3 | 7.2±0.5 | 3.0Max. | 3.0±0.5 | 1.6±0.5 | 8.0Ref | 3..8Ref | 3.7Ref |
| TSM0630A | 6.6±0.3 | 7.2±0.5 | 3.0Max. | 3.0±0.5 | 1.6±0.5 | 8.0Ref | 3.8Ref | 3.7Ref |
| TSM0640 | 6.6±0.3 | 7.2±0.5 | 4.0Max. | 3.0±0.5 | 1.6±0.5 | 8.0Ref | 3.8Ref | 3.7Ref |
| TSM0650 | 6.6±0.3 | 7.2±0.5 | 5.0Max | 3.0±0.5 | 1.6±0.5 | 8.0Ref | 3.8Ref | 3.7Ref |
| TSM0850 | 8.0±0.3 | 8.7±0.5 | 5.0Max. | 3.0±0.5 | 1.8±0.5 | 9.8Ref | 3.5Ref | 4.8Ref |
| TSM1040 | 10±0.5 | 11.5±1.0 | 4.0Max. | 3.0±0.5 | 2.2±0.5 | 13.0Ref | 3.8Ref | 6.0Ref |
| TSM1050 | 10±0.5 | 11.5±1.0 | 5.0Max. | 3.0±0.5 | 2.2±0.5 | 13.0Ref | 3.8Ref | 6.0Ref |
| TSM1235 | 12.8±0.5 | 13.5±1.0 | 4.0Max. | 3.8±0.5 | 2.5±0.5 | 14.5Ref | 5.0Ref | 7.8Ref |
| TSM1250 | 12.8±0.5 | 13.5±1.0 | 5.0Max. | 3.8±0.5 | 2.5±0.5 | 14.5Ref | 5.0Ref | 7.8Ref |
| TSM1265 | 12.8±0.5 | 13.5±1.0 | 6.5Max | 3.8±0.5 | 2.5±0.5 | 14.5Ref | 5.0Ref | 7.8Ref |
| TSM1770 | 17.2Max. | 18.0±0.5 | 7.2Max. | 11.9±0.3 | 2.7±0.5 | 19.5Ref | 13.0Ref | 11.0Ref |
| TSM2213 | 22.0±0.5 | 28.0±1.0 | 12.6±0.4 | 18.8±0.5 | 5.5±0.4 | 24.5Ref | 20.0Re | 11.5Ref |
| Series | QTY(Pcs/Reel) | Ao | Bo | Ko | G | w | P | T | Reel Typ. |
| TSM0412 | 3000 | 4.3 | 4.8 | 1.4 | 12.5 | 12 | 8 | 0.4 | 13"330mm |
| TSM0415 | 3000 | 4.3 | 4.8 | 1.7 | 12.5 | 12 | 8 | 0.4 | 13"330mm |
| TSM0420 | 3000 | 4.3 | 4.8 | 2.2 | 12.5 | 12 | 8 | 0.4 | 13"330mm |
| TSM0520 | 3000 | 5.5 | 6 | 2.2 | 12.5 | 12 | 8 | 0.4 | 13"330mm |
| TSM0530 | 2000 | 5.5 | 6 | 3.2 | 12.5 | 12 | 8 | 0.4 | 13"330mm |
| TSM0550 | 1500 | 5.5 | 6 | 5.2 | 12.5 | 12 | 8 | 0.4 | 13"330mm |
| TSMA612 | 2000 | 6.6 | 7.3 | 1.4 | 16.5 | 16 | 12 | 0.4 | 13"330mm |
| TSMA630 | 1000 | 6.6 | 7.3 | 3.2 | 16.5 | 16 | 12 | 0.4 | 13"330mm |
| TSMA640 | 1000 | 6.6 | 7.3 | 4.2 | 16.5 | 16 | 12 | 0.4 | 13"330mm |
| TSM0618 | 2000 | 7.2 | 8 | 2 | 16.5 | 16 | 12 | 0.4 | 13"330mm |
| TSM0620 | 2000 | 7.2 | 8 | 2.2 | 16.5 | 16 | 12 | 0.4 | 13"330mm |
| TSM0624 | 2000 | 7.2 | 8 | 2.6 | 16.5 | 16 | 12 | 0.4 | 13"330mm |
| TSM0630 | 1000 | 7.2 | 8 | 3.2 | 16.5 | 16 | 12 | 0.4 | 13"330mm |
| TSM0630A | 1000 | 7.2 | 8 | 3.2 | 16.5 | 16 | 12 | 0.4 | 13"330mm |
| TSM0640 | 1000 | 7.2 | 8 | 4.2 | 16.5 | 16 | 12 | 0.4 | 13"330mm |
| TSM0650 | 1000 | 7.2 | 8 | 5.2 | 16.5 | 16 | 12 | 0.4 | 13"330mm |
| TSM0850 | 1000 | 7.8 | 8.6 | 5.2 | 16.5 | 16 | 12 | 0.4 | 13"330mm |
| TSM1040 | 1000 | 11 | 12 | 4.2 | 24.5 | 24 | 16 | 0.4 | 13"330mm |
| TSM1050 | 800 | 11 | 12 | 5.2 | 24.5 | 24 | 16 | 0.4 | 13"330mm |
| TSM1235 | 500 | 13.5 | 14.5 | 3.7 | 24.5 | 24 | 16 | 0.4 | 13"330mm |
| TSM1250 | 500 | 13.5 | 14.5 | 5.2 | 24.5 | 24 | 16 | 0.4 | 13"330mm |
| TSM1265 | 500 | 13.5 | 14.5 | 6.7 | 24.5 | 24 | 16 | 0.4 | 13"330mm |
| TSM1770 | 300 | 17.8 | 19.2 | 7.2 | 32.5 | 32 | 20 | 0.5 | 13"330mm |
| TSM2213 | 100 | 22.5 | 23 | 13.2 | 44.5 | 44 | 32 | 0.5 | 13"330mm |
| PART NO. | L(0A) (μH±20%) | Irms (Amperes) | Isat (Amperes) | DCR (m Ω)Typ. | DCR (m Ω)Max. | |
| TSM0412-R47M | 0.47 | 4.5 | 6 | 24 | 30 |
|
| TSM0412-R68M | 0.68 | 3.5 | 5 | 36 | 41 |
|
| TSM0412-1R0M | 1 | 2.5 | 5 | 60 | 79 |
|
| TSM0412-1R5M | 1.5 | 2 | 3.5 | 74 | 80 |
|
| TSM0412-2R2M | 2.2 | 2 | 3 | 96 | 110 |
|
| TSM0415-R47M | 0.47 | 5 | 9 | 20 | 27 |
|
| TSM0415-1R0M | 1 | 4 | 6 | 39 | 50 |
|
| TSM0415-1R5M | 1.5 | 3.5 | 5.5 | 48 | 63 |
|
| TSM0415-2R2M | 2.2 | 2.5 | 4 | 67 | 86 |
|
| TSM0415-3R3M | 3.3 | 2 | 3.5 | 116 | 156 |
|
| TSM0420-R10M | 0.1 | 12 | 25 | 5.5 | 8 |
|
| TSM0420-R22M | 0.22 | 10 | 14 | 6.3 | 10 |
|
| TSM0420-R36M | 0.36 | 8 | 11 | 8.6 | 12 |
|
| TSM0420-R47M | 0.47 | 7 | 9.5 | 11 | 14 |
|
| TSM0420-R56M | 0.56 | 6.5 | 9 | 13 | 20 |
|
| TSM0420-1R0M | 1 | 4.5 | 7 | 21 | 28 |
|
| TSM0420-1R2M | 1.2 | 4 | 7 | 23 | 32 |
|
| TSM0420-1R5M | 1.5 | 4 | 6 | 28 | 38 |
|
| TSM0420-2R2M | 2.2 | 3 | 5 | 42 | 52 |
|
| TSM0420-3R3M | 3.3 | 2.5 | 4 | 60 | 80 |
|
| TSM0420-4R7M | 4.7 | 2 | 3 | 118 | 150 |
|
| TSM0420-5R6M | 5.6 | 1.8 | 2 | 126 | 150 |
|
| TSM0420-6R8M | 6.8 | 1.8 | 2 | 130 | 170 |
|
| TSM0420-100M | 10 | 1.5 | 2 | 225 | 280 |
|
| TSM0520-R47M | 0.47 | 8 | 12.5 | 10.5 | 15 |
|
| TSM0520-R68M | 0.68 | 7 | 10 | 14 | 20 |
|
| TSM0520-1R0M | 1 | 6 | 8 | 15 | 21 |
|
| TSM0520-1R2M | 1.2 | 5 | 8 | 17 | 27 |
|
| TSM0520-1R5M | 1.5 | 4 | 6 | 20 | 26 |
|
| TSM0520-2R2M | 2.2 | 3.5 | 6 | 32 | 42 |
|
| TSM0520-3R3M | 3.3 | 3.5 | 5.5 | 44 | 58 |
|
| TSM0520-4R7M | 4.7 | 3.2 | 4.5 | 68 | 90 |
|
| TSM0520-5R6M | 5.6 | 3 | 4 | 75 | 97 |
|
| TSM0520-6R8M | 6.8 | 2 | 3.5 | 96 | 130 |
|
| TSM0520-100M | 10 | 2 | 3 | 170 | 221 |
|
| TSM0530-R68M | 0.68 | 8.5 | 14 | 11 | 12.5 |
|
| TSM0530-1R0M | 1 | 7 | 11 | 13 | 15 |
|
| TSM0530-1R5M | 1.5 | 6 | 10 | 20 | 25 |
|
| TSM0530-2R2M | 2.2 | 5.5 | 9 | 26 | 32 |
|
| TSM0530-3R3M | 3.3 | 5 | 7 | 30 | 40 |
|
| TSM0530-4R7M | 4.7 | 4 | 6 | 46 | 60 |
|
| TSM0530-5R6M | 5.6 | 4 | 5.5 | 62 | 79 |
|
| TSM0530-6R8M | 6.8 | 3 | 5 | 66 | 86 |
|
| TSM0530-100M | 10 | 2 | 4 | 115 | 150 |
|
| PART NO. | L(0A) (μH±20%) | Irms (Amperes) | Isat (Amperes) | DCR (m Ω)Typ. | DCR (m Ω)Max. | |
| TSM0550-100M | 10 | 2.5 | 4.5 | 80 | 103 |
|
| TSM0550-150M | 15 | 2 | 4 | 140 | 180 |
|
| TSM0550-220M | 22 | 1.5 | 2.5 | 180 | 230 |
|
| TSM0550-330M | 33 | 1.5 | 2 | 345 | 445 |
|
| TSM0550-470M | 47 | 1 | 2 | 404 | 527 |
|
| TSM0550-560M | 56 | 0.8 | 1 | 456 | 600 |
|
| TSMA612-R10M | 0.1 | 13 | 25 | 4 | 4.8 |
|
| TSMA612-R47M | 0.47 | 7 | 13 | 16 | 19.2 |
|
| TSMA612-3R3M | 3.3 | 3.2 | 5.2 | 90 | 108 |
|
| TSMA612-4R7M | 4.7 | 2.5 | 4.5 | 110 | 132 |
|
| TSMA612-6R8M | 6.8 | 2.1 | 3.8 | 160 | 192 |
|
| TSMA612-100M | 10 | 1.9 | 2.8 | 250 | 300 |
|
| TSMA630-R68M | 0.68 | 11 | 16 | 12 | 16 |
|
| TSMA630-1R5M | 1.5 | 9 | 12 | 16 | 22 |
|
| TSMA630-2R2M | 2.2 | 8 | 11 | 17 | 20 |
|
| TSMA630-2R7M | 2.7 | 6 | 8 | 25 | 34 |
|
| TSMA630-3R3M | 3.3 | 5 | 7 | 32 | 45 |
|
| TSMA630-4R7M | 4.7 | 5.5 | 7 | 34 | 45 |
|
| TSMA630-5R6M | 5.6 | 4 | 6 | 54 | 70 |
|
| TSMA630-6R8M | 6.8 | 5 | 7 | 63 | 84 |
|
| TSMA630-100M | 10 | 4 | 6 | 75 | 100 |
|
| TSMA640-150M | 15 | 3 | 4 | 96 | 120 |
|
| TSMA640-180M | 18 | 2 | 3 | 120 | 160 |
|
| TSMA640-220M | 22 | 2 | 3 | 125 | 170 |
|
| TSMA640-470M | 47 | 1.5 | 2 | 260 | 345 |
|
| TSM0618-1R0M | 1 | 7 | 14 | 22 | 25 |
|
| TSM0618-1R5M | 1.5 | 5.5 | 12 | 32 | 36 |
|
| TSM0618-2R2M | 2.2 | 4 | 11 | 41 | 46 |
|
| TSM0618-3R3M | 3.3 | 3.5 | 8 | 71 | 80 |
|
| TSM0618-4R7M | 4.7 | 3.5 | 5 | 75 | 100 |
|
| TSM0618-5R6M | 5.6 | 2.8 | 3.8 | 99 | 120 |
|
| TSM0618-6R8M | 6.8 | 2.8 | 3.5 | 99 | 120 |
|
| TSM0620-1R0M | 1 | 7 | 14 | 16 | 21 |
|
| TSM0620-1R5M | 1.5 | 7 | 10 | 17 | 22 |
|
| TSM0620-2R2M | 2.2 | 5 | 8 | 23 | 28 |
|
| TSM0620-3R3M | 3.3 | 4 | 7 | 31 | 39 |
|
| TSM0620-4R7M | 4.7 | 3.5 | 5.5 | 41 | 50 |
|
| TSM0620-5R6M | 5.6 | 3 | 4.5 | 87 | 115 |
|
| TSM0620-6R8M | 6.8 | 2.5 | 4 | 110 | 132 |
|
| TSM0620-8R2M | 8.2 | 2.2 | 3.5 | 168 | 217 |
|
| TSM0620-100M | 10 | 2 | 3.5 | 191 | 220 |
|
| TSM0624-1R0M | 1 | 9 | 12 | 11.2 | 13.5 |
|
| TSM0624-1R5M | 1.5 | 7 | 10 | 17 | 20 |
|
| TSM0624-2R2M | 2.2 | 5 | 8 | 23 | 28 |
|
| TSM0624-3R3M | 3.3 | 4 | 7 | 31 | 39 |
|
| TSM0624-4R7M | 4.7 | 3.5 | 5.5 | 41 | 50 |
|
| TSM0624-100M | 10 | 2 | 3.5 | 91 | 120 |
|
| PART NO. | L(0A) (μH±20%) | Irms (Amperes) | Isat (Amperes) | DCR (m Ω)Typ. | DCR (m Ω)Max. | |
| TSM0630-R10M | 0.1 | 32.5 | 60 | 1.5 | 1.7 |
|
| TSM0630-R15M | 0.15 | 26 | 52 | 1.9 | 2.5 |
|
| TSM0630-R20M | 0.2 | 24 | 41 | 2.4 | 3 |
|
| TSM0630-R22M | 0.22 | 23 | 40 | 2.5 | 3 |
|
| TSM0630-R33M | 0.33 | 20 | 30 | 3.5 | 4 |
|
| TSM0630-R47M | 0.47 | 17.5 | 26 | 4 | 4.5 |
|
| TSM0630-R68M | 0.68 | 15.5 | 25 | 5 | 5.5 |
|
| TSM0630-R82M | 0.82 | 13 | 24 | 6.7 | 8 |
|
| TSM0630-1R0M | 1 | 11 | 22 | 9 | 10 |
|
| TSM0630-1R5M | 1.5 | 9 | 18 | 14 | 15.5 |
|
| TSM0630-2R2M | 2.2 | 8 | 14 | 18 | 20 |
|
| TSM0630-3R3M | 3.3 | 6 | 13.5 | 28 | 32 |
|
| TSM0630-4R7M | 4.7 | 5.5 | 10 | 37 | 40 |
|
| TSM0630-5R6M | 5.6 | 5 | 8 | 47 | 60 |
|
| TSM0630-6R8M | 6.8 | 4.5 | 8 | 54 | 60 |
|
| TSM0630-8R2M | 8.2 | 4 | 7.5 | 64 | 68 |
|
| TSM0630-100M | 10 | 3 | 7 | 102 | 105 |
|
| TSM0630A-1R0M | 1 | 12.5 | 9.5 | 7.6 | 8.5 |
|
| TSM0630A-1R5M | 1.5 | 10.5 | 8 | 11.7 | 13.5 |
|
| TSM0630A-2R2M | 2.2 | 9 | 7 | 15.7 | 17 |
|
| TSM0630A-3R3M | 3.3 | 7 | 6.5 | 24.8 | 26.8 |
|
| TSM0630A-4R7M | 4.7 | 6 | 4 | 31.8 | 34 |
|
| TSM0630A-6R8M | 6.8 | 5.5 | 4 | 44.8 | 46.8 |
|
| TSM0630A-8R2M | 8.2 | 5 | 4 | 52.3 | 57 |
|
| TSM0630A- 100M | 10 | 4 | 3.5 | 67.8 | 72 |
|
| TSM0630A-220M | 22 | 2.9 | 2.5 | 128.9 | 135 |
|
| TSM0640-R33M | 0.33 | 20 | 30 | 2 | 2.5 |
|
| TSM0640-R56M | 0.56 | 17 | 25 | 3.6 | 4.5 |
|
| TSM0640-R68M | 0.68 | 13 | 15 | 3.8 | 4.5 |
|
| TSM0640-1R5M | 1.5 | 10 | 19 | 13.5 | 16 |
|
| TSM0640-2R2M | 2.2 | 8.5 | 16 | 15 | 18 |
|
| TSM0640-3R3M | 3.3 | 7 | 13 | 21 | 25 |
|
| TSM0640-4R7M | 4.7 | 6 | 10 | 23 | 30 |
|
| TSM0650-R36M | 0.36 | 21 | 25 | 3.2 | 3.5 |
|
| TSM0650-R56M | 0.56 | 20 | 18 | 3.4 | 3.6 |
|
| TSM0650-R68M | 0.68 | 18 | 17 | 3.9 | 4.2 |
|
| TSM0650-R82M | 0.82 | 16.5 | 16 | 4.6 | 4.9 |
|
| TSM0650-1R0M | 1 | 13 | 15 | 5.6 | 6.5 |
|
| TSM0650-1R5M | 1.5 | 8 | 14 | 8.5 | 12 |
|
| TSM0650-2R2M | 2.2 | 8 | 12 | 11.2 | 12.5 |
|
| TSM0650-3R3M | 3.3 | 7 | 8 | 19.9 | 20.9 |
|
| TSM0650-4R7M | 4.7 | 6.5 | 7 | 23 | 25 |
|
| TSM0650-6R8M | 6.8 | 5 | 9 | 33 | 45 |
|
| TSM0650-100M | 10 | 4 | 5.3 | 61 | 80 |
|
| TSM0650-150M | 15 | 2.5 | 4 | 90 | 120 |
|
| TSM0650-220M | 22 | 2.5 | 4 | 108 | 140 |
|
| TSM0650-330M | 33 | 2 | 4 | 160 | 210 |
|
| TSM0650-470M | 47 | 2 | 3 | 192 | 247 |
|
| PART NO. | L(0A) (μH±20%) | Irms (Amperes) | Isat (Amperes) | DCR (m Ω)Typ. | DCR (m Ω)Max. | |
| TSM0850-R68M | 0.68 | 20.0 | 26.0 | 3.4 | 4.5 |
|
| TSM0850-1R5M | 1.5 | 16.0 | 17.0 | 6.5 | 7.0 |
|
| TSM0850-2R2M | 2.2 | 14.0 | 15.0 | 6.5 | 9.0 |
|
| TSM0850-3R3M | 3.3 | 13.0 | 12.0 | 10.0 | 12.0 |
|
| TSM0850-4R7M | 4.7 | 10.0 | 11.0 | 16.0 | 19.0 |
|
| TSM0850-6R8M | 6.8 | 9.0 | 10.0 | 18.0 | 22.0 |
|
| TSM0850-100M | 10.0 | 8.0 | 8.0 | 26.0 | 30.0 |
|
| TSM0850-150M | 15.0 | 5.5 | 6.5 | 55.0 | 65.0 |
|
| TSM0850-220M | 22.0 | 4.5 | 7.0 | 85.0 | 95.0 |
|
| TSM0850-270M | 27.0 | 3.0 | 4.5 | 140.0 | 182.0 |
|
| TSM0850-330M | 33.0 | 2.0 | 4.0 | 194.0 | 237.0 |
|
| TSM0850-470M | 47.0 | 2.0 | 3.0 | 206.0 | 247.0 |
|
| TSM0850-560M | 56.0 | 1.8 | 3.0 | 240.0 | 310.0 |
|
| TSM0850-680M | 68.0 | 2.0 | 3.0 | 230.0 | 270.0 |
|
| TSM1040-R36M | 0.36 | 30 | 50 | 1.05 | 1.2 |
|
| TSM1040-R47M | 0.47 | 28 | 40 | 1.5 | 1.8 |
|
| TSM1040-R56M | 0.56 | 25 | 33 | 1.6 | 2 |
|
| TSM1040-R68M | 0.68 | 23 | 30 | 2.1 | 2.5 |
|
| TSM1040-R88M | 0.88 | 20 | 29 | 2.4 | 2.7 |
|
| TSM1040-1R0M | 1 | 18 | 28 | 3 | 3.5 |
|
| TSM1040-1R5M | 1.5 | 16 | 32 | 3.8 | 4.5 |
|
| TSM1040-2R2M | 2.2 | 12 | 18 | 6.4 | 7 |
|
| TSM1040-3R3M | 3.3 | 10 | 16 | 10.8 | 12.8 |
|
| TSM1040-4R7M | 4.7 | 8.5 | 13 | 17 | 20 |
|
| TSM1040-5R6M | 5.6 | 8 | 11 | 20 | 23 |
|
| TSM1040-6R8M | 6.8 | 7 | 10 | 22.5 | 25 |
|
| TSM1040-8R2M | 8.2 | 6 | 9 | 25 | 27.5 |
|
| TSM1040-100M | 10 | 7.5 | 8.5 | 27 | 30 |
|
| TSM1040-150M | 15 | 6.25 | 7 | 40 | 45 |
|
| TSM1040-220M | 22 | 5 | 5.5 | 60 | 66 |
|
| TSM1040-330M | 33 | 4.4 | 5 | 85 | 93.5 |
|
| TSM1040-470M | 47 | 3.3 | 3.5 | 130 | 145 |
|
| TSM1040-680M | 68 | 2.3 | 3.3 | 130 | 145 |
|
| TSM1040-820M | 82 | 2 | 3 | 130 | 145 |
|
| TSM1040-101M | 100 | 1.5 | 2.8 | 280 | 300 |
|
| TSM1050-5R2M | 5.2 | 5.5 | 10 | 16 | 21 |
|
| TSM1050-150M | 15 | 3.6 | 6 | 39 | 52 |
|
| TSM1050-220M | 22 | 4 | 6 | 73 | 92 |
|
| TSM1050-330M | 33 | 3 | 5 | 107 | 120 |
|
| TSM1050-470M | 47 | 3 | 4 | 160 | 210 |
|
| TSM1050-680M | 68 | 3 | 4 | 240 | 300 |
|
| TSM1050-101M | 100 | 2 | 3 | 320 | 400 |
|
| PART NO. | L(0A) (μH±20%) | Irms (Amperes) | Isat (Amperes) | DCR (m Ω)Typ. | DCR (m Ω)Max. | |
| TSM1235-R22M | 0.22 | 38 | 65 | 1.1 | 1.3 |
|
| TSM1235-R33M | 0.33 | 36.5 | 62 | 1.3 | 1.5 |
|
| TSM1235-R39M | 0.39 | 34 | 60 | 1.1 | 1.3 |
|
| TSM1235-R47M | 0.47 | 32 | 55 | 1.7 | 2 |
|
| TSM1235-R56M | 0.56 | 29 | 51 | 1.8 | 2.2 |
|
| TSM1235-R62M | 0.62 | 29 | 51 | 1.8 | 2.2 |
|
| TSM1235-R68M | 0.68 | 28 | 49 | 2.3 | 2.5 |
|
| TSM1235-1R0M | 1 | 24 | 40 | 3.3 | 3.5 |
|
| TSM1235-1R5M | 1.5 | 19 | 35 | 5.1 | 5.5 |
|
| TSM1235-2R2M | 2.2 | 16 | 29 | 7.2 | 8 |
|
| TSM1235-3R3M | 3.3 | 12 | 27 | 10 | 12 |
|
| TSM1235-4R7M | 4.7 | 11 | 20 | 17 | 26 |
|
| TSM1250-R22M | 0.22 | 51 | 110 | 0.64 | 0.8 |
|
| TSM1250-R33M | 0.33 | 40 | 74 | 0.9 | 1.2 |
|
| TSM1250-R36M | 0.36 | 40 | 70 | 0.9 | 1.2 |
|
| TSM1250-R47M | 0.47 | 38 | 68 | 1.1 | 1.4 |
|
| TSM1250-R56M | 0.56 | 37 | 65 | 1.3 | 1.6 |
|
| TSM1250-R68M | 0.68 | 37 | 63 | 1.3 | 1.6 |
|
| TSM1250-R82M | 0.82 | 31 | 53 | 1.8 | 2.1 |
|
| TSM1250-1R0M | 1 | 29 | 49 | 2.1 | 2.5 |
|
| TSM1250-1R2M | 1.2 | 25 | 47 | 2.6 | 3 |
|
| TSM1250-1R5M | 1.5 | 24 | 44 | 3.1 | 3.6 |
|
| TSM1250-2R2M | 2.2 | 21.5 | 33 | 4.1 | 4.8 |
|
| TSM1250-3R3M | 3.3 | 18.5 | 27 | 5.4 | 6.3 |
|
| TSM1250-4R7M | 4.7 | 14 | 23 | 9.2 | 10.5 |
|
| TSM1250-6R8M | 6.8 | 11 | 19 | 14.1 | 17 |
|
| TSM1250-100M | 10 | 9.5 | 16.5 | 19 | 22 |
|
| TSM1250-150M | 15 | 7 | 13.5 | 32 | 38 |
|
| TSM1250-220M | 22 | 6 | 9.5 | 44.8 | 52 |
|
| TSM1250-330M | 33 | 8 | 8 | 63.9 | 74 |
|
| TSM1250-470M | 47 | 4 | 7 | 95 | 110 |
|
| TSM1250-560M | 56 | 3.3 | 6.5 | 144 | 165 |
|
| TSM1250-680M | 68 | 3.2 | 6 | 144.2 | 165 |
|
| PART NO. | L(0A) (μH±20%) | Irms (Amperes) | Isat (Amperes) | DCR (m Ω)Typ. | DCR (m Ω)Max. | |
| TSM1265-R22M | 0.22 | 48 | 100 | 0.7 | 0.8 |  |
| TSM1265-R30M | 0.3 | 48 | 72 | 0.7 | 0.8 | |
| TSM1265-R33M | 0.33 | 45 | 65 | 0.83 | 0.95 | |
| TSM1265-R36M | 0.36 | 45 | 64.5 | 0.83 | 0.95 | |
| TSM1265-R40M | 0.4 | 41 | 64 | 1 | 1.2 | |
| TSM1265-R47M | 0.47 | 41 | 63 | 1 | 1.2 | |
| TSM1265-R56M | 0.56 | 38 | 67 | 1.1 | 1.4 | |
| TSM1265-R68M | 0.68 | 38 | 65 | 1.1 | 1.4 | |
| TSM1265-R80M | 0.8 | 34 | 57 | 1.6 | 2 | |
| TSM1265-R82M | 0.82 | 34 | 56 | 1.6 | 2 | |
| TSM1265-1R0M | 1 | 34 | 54 | 1.6 | 2 | |
| TSM1265-1R2M | 1.2 | 26 | 48 | 2.4 | 3.2 | |
| TSM1265-1R5M | 1.5 | 26 | 45 | 2.4 | 3.2 | |
| TSM1265-1R8M | 1.8 | 22 | 40 | 3.6 | 4.3 | |
| TSM1265-2R2M | 2.2 | 22 | 38 | 3.6 | 4.3 | |
| TSM1265-3R3M | 3.3 | 19 | 27 | 4.8 | 5.7 | |
| TSM1265-4R7M | 4.7 | 17 | 24 | 6.1 | 7.2 | |
| TSM1265-5R6M | 5.6 | 11 | 22 | 9.1 | 11 | |
| TSM1265-6R8M | 6.8 | 14 | 20.5 | 9.1 | 11 | |
| TSM1265-7R8M | 7.8 | 11 | 19 | 15 | 18 | |
| TSM1265-8R2M | 8.2 | 11 | 18 | 15 | 18 | |
| TSM1265-100M | 10 | 11 | 17 | 15 | 18 | |
| TSM1265-150M | 15 | 7.8 | 14.5 | 27.5 | 32 | |
| TSM1265-180M | 18 | 7 | 12 | 32.7 | 38 | |
| TSM1265-220M | 22 | 7 | 10.5 | 32.7 | 38 | |
| TSM1265-330M | 33 | 6 | 8.5 | 46.5 | 53 | |
| TSM1265-470M | 47 | 5 | 7.5 | 63.1 | 72 | |
| TSM1265-560M | 56 | 3.8 | 7 | 105.1 | 120 | |
| TSM1265-680M | 68 | 3.8 | 6 | 105.1 | 120 | |
| TSM1265-101M | 100 | 3 | 5 | 150.4 | 170 | |
| TSM1265-151M | 150 | 2 | 3.5 | 282 | 340 | |
| PART NO. | L(0A) (μH±20%) | Irms (Amperes) | Isat (Amperes) | DCR (m Ω)Typ. | DCR (m Ω)Max. | |
| TSM1770-R22M | 0.22 | 80 | 129 | 0.63 | 0.7 |
|
| TSM1770-R33M | 0.33 | 75.5 | 55 | 0.61 | 0.67 |
|
| TSM1770-R47M | 0.47 | 64.5 | 62 | 0.78 | 0.87 |
|
| TSM1770-R56M | 0.56 | 61 | 66 | 0.83 | 0.91 |
|
| TSM1770-R82M | 0.82 | 56.5 | 45 | 0.98 | 1.08 |
|
| TSM1770-1R0M | 1.0 | 55.5 | 32 | 1.21 | 1.38 |
|
| TSM1770-1R5M | 1.5 | 48 | 31 | 1.54 | 1.62 |
|
| TSM1770-1R8M | 1.8 | 38 | 65 | 1.96 | 2.07 |
|
| TSM1770-2R2M | 2.2 | 43.5 | 28 | 1.85 | 1.98 |
|
| TSM1770-3R3M | 3.3 | 35 | 27 | 2.79 | 2.93 |
|
| TSM1770-4R7M | 4.7 | 30 | 21 | 3.98 | 4.18 |
|
| TSM1770-5R6M | 5.6 | 28 | 21 | 4.23 | 4.44 |
|
| TSM1770-6R8M | 6.8 | 22.5 | 18.5 | 5.86 | 6.15 |
|
| TSM1770-8R2M | 8.2 | 21 | 18 | 7.71 | 8.1 |
|
| TSM1770-100M | 10 | 19 | 17 | 8.89 | 9.33 |
|
| TSM1770-150M | 15 | 14 | 12 | 13.7 | 14.4 |
|
| TSM1770-220M | 22 | 12 | 9.5 | 20 | 21 |
|
| TSM1770-330M | 33 | 10.7 | 9 | 35.1 | 37 |
|
| TSM1770-470M | 47 | 8.7 | 8.6 | 40.7 | 42.7 |
|
| TSM1770-560M | 56 | 7.2 | 4.2 | 55 | 57.8 |
|
| TSM1770-680M | 68 | 6.1 | 4.5 | 72.1 | 75.7 |
|
| TSM1770-820M | 82 | 5.5 | 4.5 | 87.3 | 91.7 |
|
| TSM1770-101M | 100 | 5 | 4 | 105 | 110 |
|
| TSM2213-1R0M | 1.0 | 69.0 | 71.0 | 0.85 | 0.89 |
|
| TSM2213-1R5M | 1.5 | 65.0 | 53.0 | 0.9 | 1.2 |
|
| TSM2213-2R2M | 2.2 | 58.0 | 48.0 | 1.1 | 1.25 |
|
| TSM2213-3R3M | 3.3 | 49.0 | 41.0 | 1.4 | 1.8 |
|
| TSM2213-4R7M | 4.7 | 47.0 | 37.0 | 1.7 | 1.84 |
|
| TSM2213-5R6M | 5.6 | 40.0 | 36.5 | 2.0 | 2.5 |
|
| TSM2213-6R8M | 6.8 | 36.0 | 36.0 | 2.9 | 3.09 |
|
| TSM2213-100M | 10.0 | 28.0 | 28.0 | 3.8 | 4.14 |
|
| TSM2213-150M | 15.0 | 23.5 | 24.0 | 5.5 | 6.11 |
|
| TSM2213-220M | 22.0 | 17.5 | 16.0 | 9.0 | 10.8 |
|
| TSM2213-330M | 33.0 | 15.5 | 15.5 | 14.5 | 15.4 |
|
| TSM2213-470M | 47.0 | 13.5 | 10.0 | 16.3 | 17.7 |
|
| TSM2213-560M | 56.0 | 13.0 | 11.0 | 23.0 | 28.0 |
|
| TSM2213-680M | 68.0 | 12.5 | 13.0 | 31.5 | 38.0 |
|
| TSM2213-750M | 75.0 | 12.0 | 12.0 | 30.0 | 32.35 |
|
| TSM2213-820M | 82.0 | 10.2 | 9.0 | 31.5 | 34.2 |
|
| TSM2213-101M | 100.0 | 9.1 | 7.0 | 37.6 | 39.4 |
|
| TSM2213-151M | 150.0 | 6.0 | 8A Drop 30% | 68.0 | 80.0 |
|
| TSM2213-201M | 200.0 | 5.0 | 7A Drop 30% | 92.0 | 105.0 |
|
| TSM2213-221M | 220.0 | 4.5 | 6A Drop 30% | 108.0 | 125.0 |
|
| TSM2213-401M | 400.0 | 4.0 | 6A Drop 30% | 208.0 | 230.0 |
|
English
