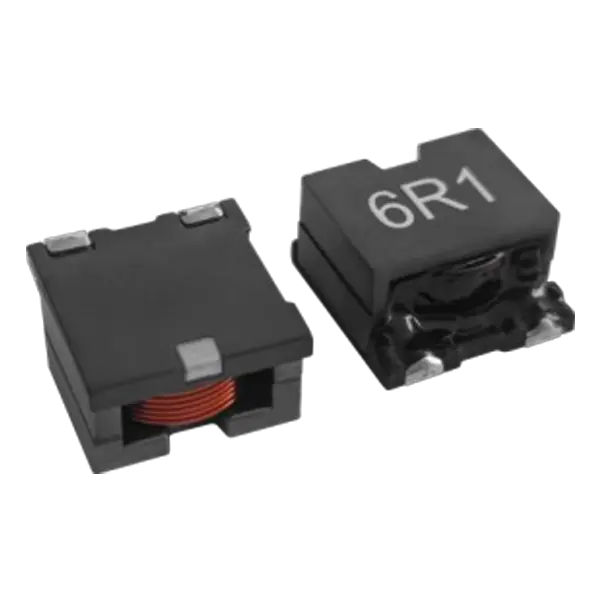

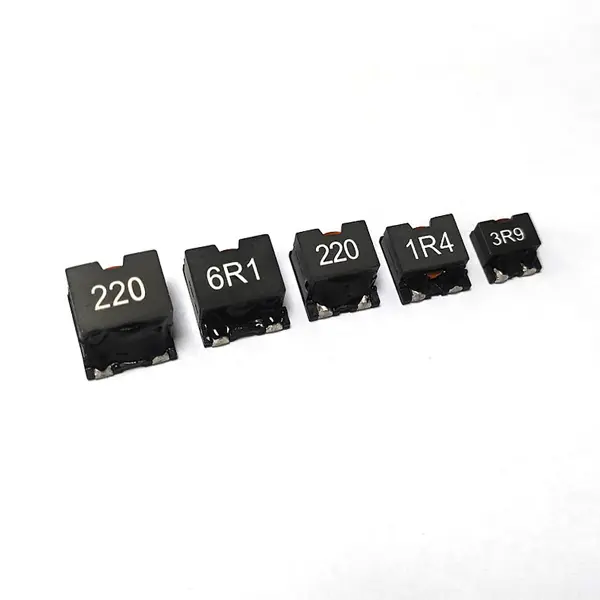

High current, low loss of iron powder core.
Low profile for machine placement.
Minimize electromagnetic interference.
Prevent EMI effect via precise impedance.
Custom inductor design available.
As a trusted custom inductor manufacturer, we provide high-quality electronic component wholesale to meet customer's needs.

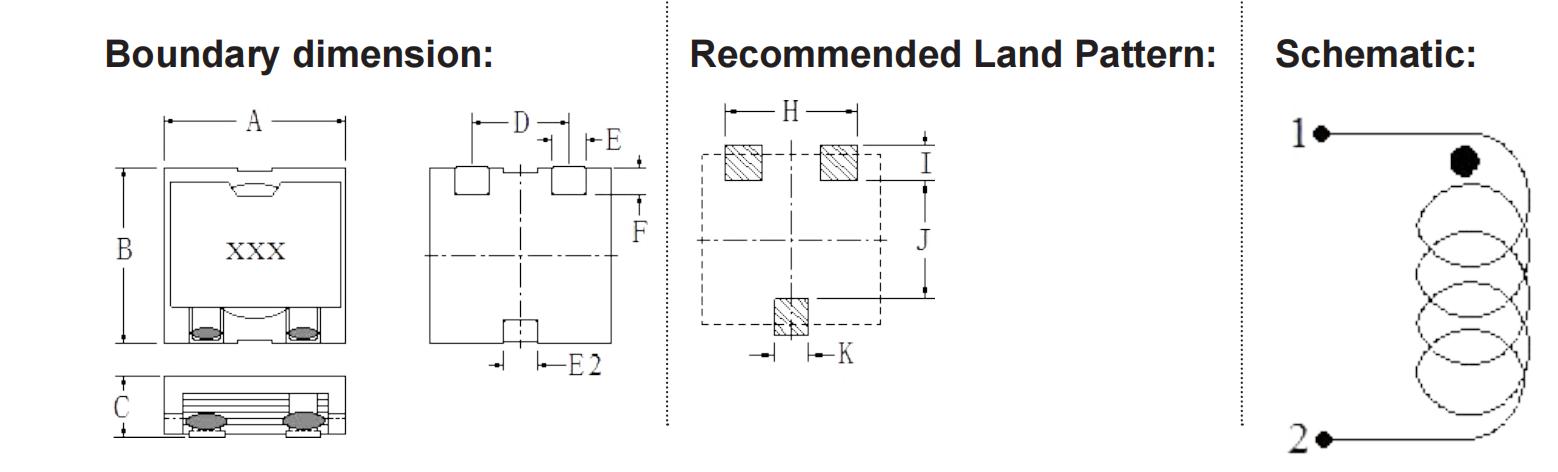

| Series Name | A | B | C | D | E | E2 | F | H | I | J | K |
| SB0450M | 10.4Max | 10.6Max | 5.5Max | 5.5±0.5 | 2.5Ref | 1.5Ref | 2.0Ref | 8.2Ref | 2.5Ref | 5.8Ref | 2.4Ref |
| SB0555M | 13.1Max | 13.5Max | 5.8Max | 7.0±0.5 | 2.5Ref | 2.5Ref | 2.0Ref | 9.8Ref | 2.5Ref | 8.0Ref | 3.0Ref |
| SB0590M | 13.1Max | 13.5Max | 9.0Max | 7.0±0.5 | 2.5Ref | 2.5Ref | 2.0Ref | 9.8Ref | 2.5Ref | 8.0Ref | 3.0Ref |
| SB5680M | 14.9Max | 15.4Max | 8.2Max | 9.0±0.5 | 2.8Ref | 2.5Ref | 1.8Ref | 13.0Ref | 2.7Ref | 10.0Ref | 3.5Ref |
| SB5612M | 14.9Max | 15.4Max | 12.2Max | 9.0±0.5 | 2.8Ref | 2.5Ref | 1.8Ref | 13.0Ref | 2.7Ref | 10.0Ref | 3.5Ref |
| SB6510M | 17.3Max | 18.8Max | 10.9±0.5 | 2.6±0.3 | 3.0±0.3 | 3.0±0.5 | 15.0Ref | 4.5Ref | 10.9Ref | 4.3Ref | |
| SB7510M | 19.9Max | 18.5Max | 13.1±0.5 | 2.5±0.3 | 3.0±0.3 | 3.0±0.5 | 17.0Ref | 4.5Ref | 10.7Ref | 4.3Ref |

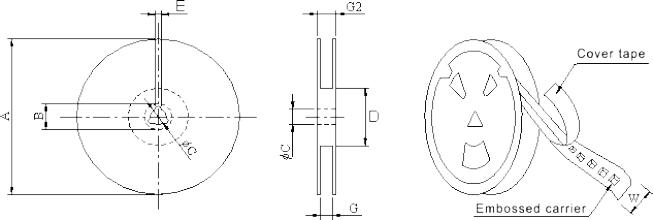

| Series | TYPE | A(Ref.) | B(Ref.) | C(Ref.) | D(Ref.) | E(Ref.) | G(Ref.) | G2(Ref.) |
| SB0450M | 13''*24mm | 330±1 | 20±0.8 | 13±0.5 | 100±1 | 2.0±0.5 | 24.5±0.5 | 29±0.5 |
| SB0555M | 13''*24mm | 330±1 | 20±0.8 | 13±0.5 | 100±1 | 2.0±0.5 | 24.5±0.5 | 29±0.5 |
| SB0590M | 13''*24mm | 330±1 | 20±0.8 | 13±0.5 | 100±1 | 2.0±0.5 | 24.5±0.5 | 29±0.5 |
| SB5680M | 13''*24mm | 330±1 | 20±0.8 | 13±0.5 | 100±1 | 2.0±0.5 | 24.5±0.5 | 29±0.5 |
| SB5612M | 13''*24mm | 330±1 | 20±0.8 | 13±0.5 | 100±1 | 2.0±0.5 | 24.5±0.5 | 29±0.5 |
| SB6510M | 13''*32mm | 330±1 | 20±0.8 | 13±0.5 | 100±1 | 2.0±0.5 | 32.5 | 36.5 |
| SB7510M | 13''*32.4mm | 330±1 | 20±0.8 | 13±0.5 | 100±1 | 2.0±0.5 | 32.9 | 36.9 |

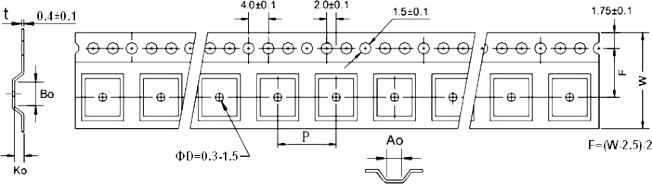

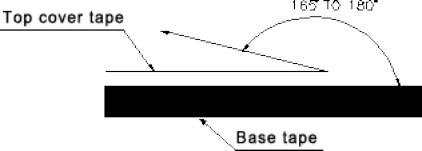

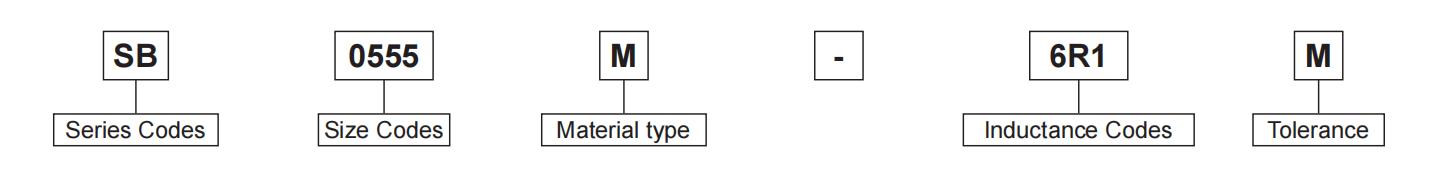

| Series | QTY (Pcs/Reel) | Ao | Bo | Ko | W | P |
| SB0450M | 700 Ref. | 11.0 | 10.8 | 5.6 | 24 | 16 |
| SB0555M | 500 Ref. | 13.8 | 13.5 | 5.8 | 24 | 20 |
| SB0590M | 300 Ref. | 13.8 | 13.5 | 9.2 | 24 | 20 |
| SB5680M | 350 Ref. | 15.4 | 15.6 | 8.2 | 24 | 20 |
| SB5612M | 250 Ref. | 15.4 | 15.6 | 12.2 | 24 | 20 |
| SB6580M | 200 Ref. | 19.0 | 17.5 | 10.5 | 32 | 28 |
| SB6585M | 200 Ref. | 19.0 | 17.5 | 10.5 | 32 | 28 |
| SB6595M | 200 Ref. | 19.0 | 17.5 | 10.5 | 32 | 28 |
| SB6510M | 200 Ref. | 19.0 | 17.5 | 10.5 | 32 | 28 |
| SB6511M | 180 Ref. | 19.0 | 17.5 | 11.5 | 32 | 28 |
| SB7580M | 200 Ref. | 19.0 | 20.4 | 9.8 | 32 | 28 |
| SB7590M | 200 Ref. | 19.0 | 20.4 | 9.8 | 32 | 28 |
| SB7595M | 200 Ref. | 19.0 | 20.4 | 9.8 | 32 | 28 |
| SB7510M | 180 Ref. | 19.0 | 20.4 | 10.8 | 32 | 28 |
| PART No. | L(0A)(μH±20%) | Irms(A)Type. | Isat(A)Type. | DCR(mΩ)Type. | DCR(mΩ)Max. | |
| SB0450M-R80M | 0.8 | 16.3 | 25.6 | 4.3 | 5 |
|
| SB0450M-1R0M | 1 | 16.3 | 17.5 | 4.3 | 5 |
|
| SB0450M-1R3M | 1.3 | 16.3 | 17.2 | 4.3 | 5 |
|
| SB0450M-1R5M | 1.5 | 16.3 | 14.5 | 4.3 | 5 |
|
| SB0450M-2R2M | 2.2 | 16.3 | 10 | 4.3 | 5 |
|
| SB0450M-1R2M | 1.2 | 15 | 21.3 | 5.9 | 7 |
|
| SB0450M-1R8M | 1.8 | 15 | 14.3 | 5.9 | 7 |
|
| SB0450M-3R2M | 3.2 | 15 | 8.5 | 5.9 | 7 |
|
| SB0450M-2R5M | 2.5 | 12 | 12.1 | 6.4 | 8.5 |
|
| SB0450M-4R3M | 4.3 | 12 | 7 | 6.4 | 8.5 |
|
| SB0450M-2R0M | 2 | 11.5 | 16.2 | 8.3 | 10 |
|
| SB0450M-4R0M | 4 | 11.5 | 8.8 | 8.3 | 10 |
|
| SB0450M-5R7M | 5.7 | 11.5 | 6 | 8.3 | 10 |
|
| SB0555M-R33M | 0.33 | 18 | 43 | 0.8 | 1 |
|
| SB0555M-R65M | 0.65 | 16 | 28 | 2.1 | 2.5 |
|
| SB0555M-1R0M | 1 | 13 | 33.5 | 2.7 | 3 |
|
| SB0555M-1R8M | 1.8 | 13 | 20 | 2.7 | 3 |
|
| SB0555M-2R7M | 2.7 | 13 | 14 | 2.7 | 3 |
|
| SB0555M-3R3M | 3.3 | 9.4 | 14 | 5.9 | 6.5 |
|
| SB0555M-4R0M | 4 | 9.4 | 13 | 5.9 | 6.5 |
|
| SB0555M-4R7M | 4.7 | 9.4 | 12 | 5.9 | 6.5 |
|
| SB0555M-6R0M | 6 | 9.4 | 9.5 | 5.9 | 6.5 |
|
| SB0555M-8R0M | 8 | 7.6 | 9 | 9.5 | 11 |
|
| SB0555M-100M | 10 | 7.2 | 7.5 | 9.5 | 11 |
|
| SB0590M-100M | 10 | 9.2 | 13.16 | 13.7 | 15 |
|
| SB0590M-150M | 15 | 9.2 | 8.6 | 13.7 | 15 |
|
| SB0590M-220M | 22 | 7.7 | 7.36 | 21 | 23.1 |
|
| SB0590M-330M | 33 | 7.7 | 4.76 | 21 | 23.1 |
|
| SB0590M-470M | 47 | 7.7 | 3.2 | 21 | 23.1 |
|
| SB5680M-R40N | 0.4±30% | 23 | 66 | 1 | 1.2 |
|
| SB5680M-R90M | 0.9 | 21.5 | 45 | 1.2 | 1.5 |
|
| SB5680M-1R5M | 1.5 | 20 | 34 | 1.7 | 2 |
|
| SB5680M-2R4M | 2.4 | 17.5 | 28 | 2.7 | 3.2 |
|
| SB5680M-3R4M | 3.4 | 16 | 23 | 4.1 | 5 |
|
| SB5680M-4R7M | 4.7 | 12.5 | 19 | 5 | 6 |
|
| SB5680M-6R1M | 6.1 | 11 | 18.5 | 6.5 | 7.8 |
|
| SB5680M-7R7M | 7.7 | 10 | 15.5 | 8.2 | 9.9 |
|
| SB5680M-9R5M | 9.5 | 8.5 | 14 | 11.1 | 13.3 |
|
| SB5680M-100M | 10 | 10 | 11.5 | 8.2 | 9.9 |
|
| SB5680M-120M | 12 | 8.5 | 10 | 11.1 | 13.3 |
|
| SB5680M-470M | 47 | 2.5 | 3 | 22.3 | 27 |
|
| PART No. | L(0A)(μH±20%) | Irms(A)Type. | Isat(A)Type. | DCR(mΩ)Type. | DCR(mΩ)Max. | |
| SB5612M-4R7M | 4.7 | 13 | 18.4 | 3.7 | 4.5 |
|
| SB5612M-6R1M | 6.1 | 12.5 | 16.4 | 4.5 | 5.4 |
|
| SB5612M-7R7M | 7.7 | 10.3 | 14.8 | 6.3 | 7.6 |
|
| SB5612M-100M | 10 | 9.6 | 13.1 | 7 | 8.4 |
|
| SB5612M-120M | 12 | 9 | 11.8 | 8.7 | 9.8 |
|
| SB5612M-140M | 14 | 8.3 | 10.9 | 9.4 | 11.3 |
|
| SB5612M-220ML | 22 | 8.3 | 6.4 | 9.4 | 11.3 |
|
| SB5612M-150M | 15 | 8 | 9.5 | 9.5 | 11.4 |
|
| SB5612M-220M | 22 | 7 | 8 | 11 | 13.2 |
|
| SB5612M-330M | 33 | 6 | 6.5 | 17 | 20.4 |
|
| SB5612M-470M | 47 | 3.5 | 5 | 25 | 30 |
|
| PART No. | C (mm) Height Max | L(0A)(μH±20%) | Irms(A)Type. | Isat(A)Type. | DCR(mΩ)Type. | DCR(mΩ)Max. | |
| SB6580M-1R0M | 8.0 | 1 | 36 | 34 | 1.05 | 1.15 |
|
| SB6585M-1R5M | 8.7 | 1.5 | 30 | 37 | 1.5 | 1.6 |
|
| SB6595M-2R2M | 9.6 | 2.2 | 26.8 | 34 | 1.95 | 2.1 |
|
| SB6510M-3R3M | 10.3 | 3.3 | 25 | 28 | 2.4 | 2.6 |
|
| SB6510M-4R7M | 10.3 | 4.7 | 25 | 18.6 | 2.4 | 2.6 |
|
| SB6585M-6R8M | 8.7 | 6.8 | 14.4 | 15.5 | 6.35 | 6.8 |
|
| SB6585M-100M | 8.7 | 10 | 13 | 12.2 | 7.35 | 7.9 |
|
| SB6595M-150M | 9.6 | 15 | 11.7 | 12.6 | 10.35 | 11.1 |
|
| SB6510M-200M | 10.3 | 20 | 10 | 11.3 | 12.35 | 13.25 |
|
| SB6511M-300M | 11.3 | 30 | 8.5 | 9.2 | 15.35 | 16.5 |
|
| SB7580M-1R0M | 8.0 | 1 | 36.3 | 46.6 | 0.95 | 1.09 |
|
| SB7590M-1R5M | 9.0 | 1.5 | 30.2 | 48.1 | 1.35 | 1.55 |
|
| SB7595M-2R2M | 9.6 | 2.2 | 27.2 | 43.6 | 1.8 | 2.07 |
|
| SB7510M-3R3M | 10.6 | 3.3 | 25.1 | 35.1 | 2.25 | 2.59 |
|
| SB7510M-4R7M | 10.6 | 4.7 | 25.1 | 25.5 | 2.25 | 2.59 |
|
| SB7580M-6R8M | 8.0 | 6.8 | 12.7 | 21.3 | 7.6 | 8.74 |
|
| SB7580M-100M | 8.0 | 10 | 11.7 | 15.8 | 8.8 | 10.12 |
|
| SB7590M-150M | 9.0 | 15 | 10.7 | 14.7 | 11 | 12.65 |
|
| SB7595M-200M | 9.6 | 20 | 9.5 | 13.5 | 13.5 | 15.53 |
|
| SB7510M-300M | 10.6 | 30 | 8.6 | 11.5 | 17 | 19.55 |
|
