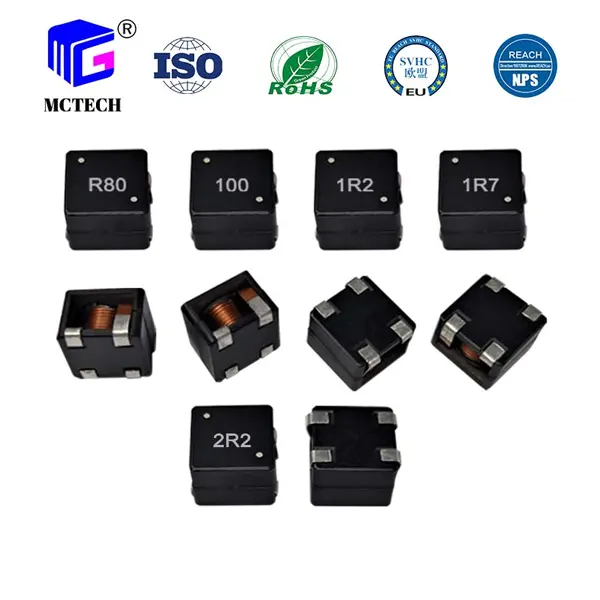

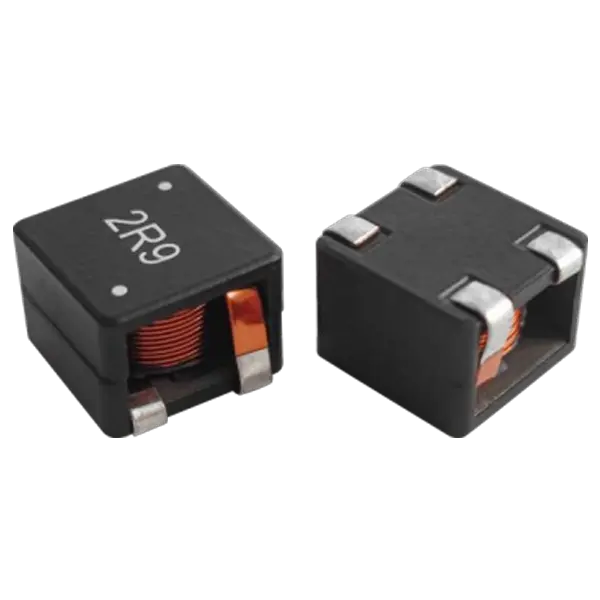

Very low RDC
Saturation current higher than 50 A
Low inductance drift over temperature
Coupled custom inductor with two identical windings
More variants due to parallel and series connection possible
Applications:
High power switching regulators.
Switching regulators with second unregulated output voltage.
1:1 flyback converter.
Buck, Boost, Sepic and Cuk Converter.
Battery Cell Charging Balancer.
As a trusted custom inductor manufacturer, we provide high-quality electronic component wholesale to meet customer's needs.

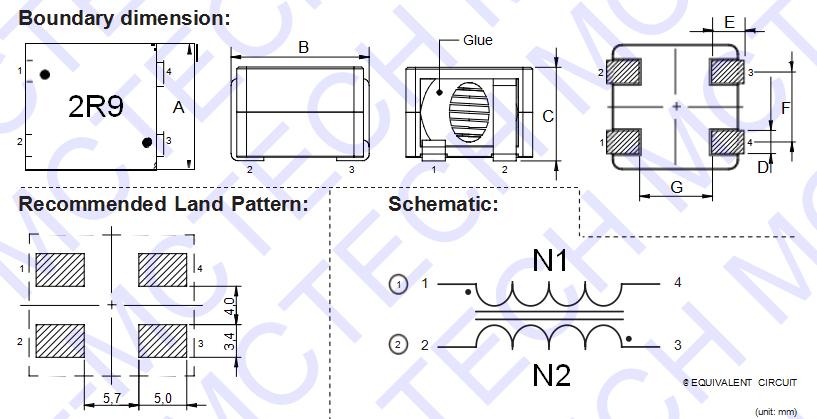

| series size | A | B | C | D | E | F | G |
| SICM0510 | 13.2±0.3 | 15.5Max | 10.5Max | 2.4Ref | 3.2Ref | 7.4Ref | 7.6Ref |
| SICM0512 | 13.2±0.3 | 15.5Max | 12.5Max | 2.4Ref | 3.2Ref | 7.4Ref | 7.6Ref |

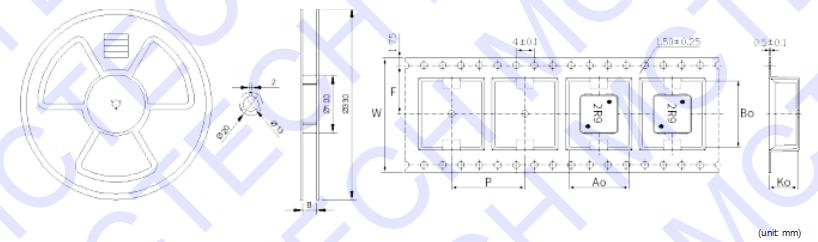

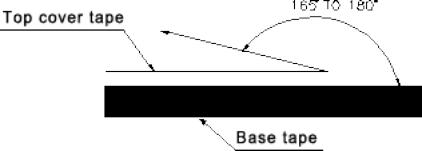

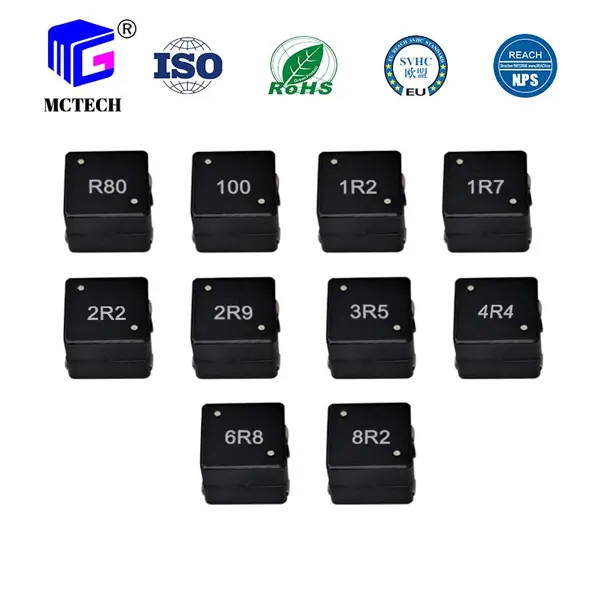

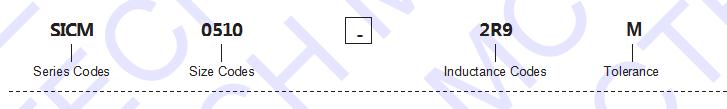

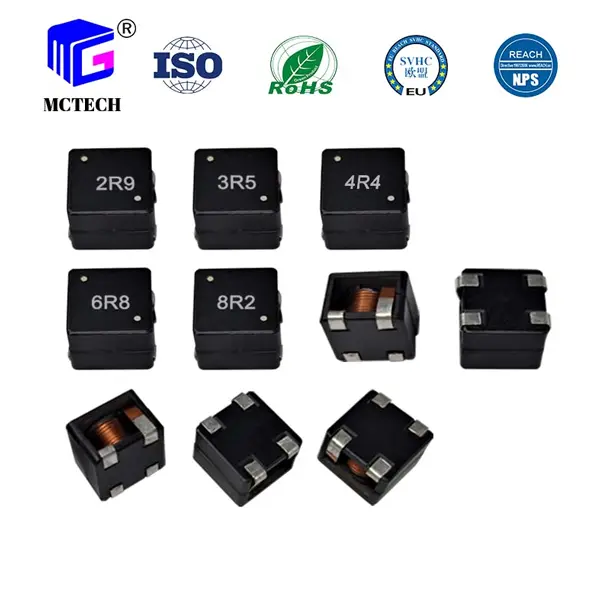

| SERIES | A(Pcs/Reel) | B | W | P | Ao | Bo | Ko |
| SICM0510 | 300 | 32.5±0.5 | 32 | 20 | 13.8±0.15 | 15.8±0.15 | 10.9±0.1 |
| SICM0512 | 200 | 32.5±0.5 | 32 | 24 | 13.8±0.15 | 15.8±0.15 | 12.2±0.1 |
| PART NO. | L1(µH) ±20% | L2(µH) ±20% | N | Irms1(A) max | Irms2(A) max | Isat1 (A) Typ. | Isat2(A) Typ. | DCR1 (m Ω)max | DCR2 (m Ω)max | |
| SICM0510-R80M | 0.8 | 0.8 | 1:1 | 28 | 28 | 62 | 62 | 1.76 | 1.76 |  |
| SICM0510-1R2M | 1.2 | 1.2 | 1:1 | 23 | 23 | 47 | 47 | 2.64 | 2.64 | |
| SICM0510-1R7M | 1.7 | 1.7 | 1:1 | 21 | 21 | 39 | 39 | 3.63 | 3.63 | |
| SICM0510-2R2M | 2.2 | 2.2 | 1:1 | 18 | 18 | 35 | 35 | 4.62 | 4.62 | |
| SICM0510-2R9M | 2.9 | 2.9 | 1:1 | 17 | 17 | 29 | 29 | 6.16 | 6.16 | |
| SICM0510-3R5M | 3.5 | 3.5 | 1:1 | 14 | 14 | 27 | 27 | 8.25 | 8.25 | |
| SICM0510-4R4M | 4.4 | 4.4 | 1:1 | 12 | 12 | 24 | 24 | 10.56 | 10.56 | |
| SICM0512-6R8M | 6.8 | 6.8 | 1:1 | 14 | 14 | 16 | 16 | 12.43 | 12.43 | |
| SICM0512-8R2M | 8.2 | 8.2 | 1:1 | 13.5 | 13.5 | 14 | 14 | 14.3 | 14.3 | |
| SICM0512-100M | 10.0 | 10.0 | 1:1 | 13 | 13 | 13.5 | 13.5 | 15.29 | 15.29 | |
