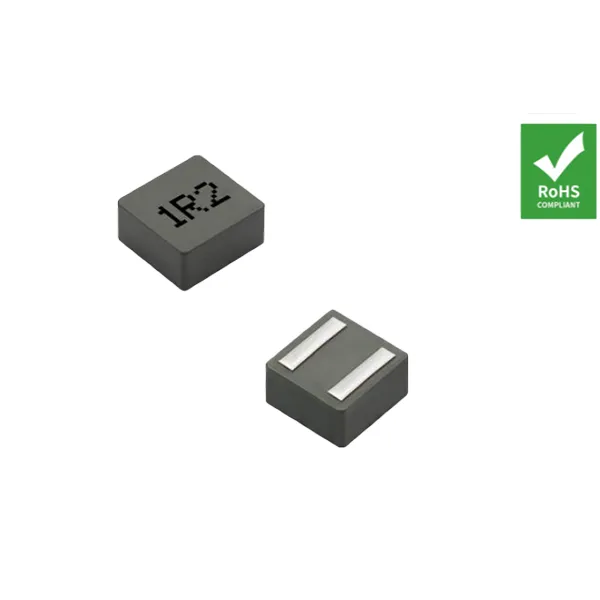

Assemblage design,sturdy srtucture.
High inductance, high current, low magnetic loss, low ERS, small parasitic capacitance.
Flat wire winding, achieve a low DCR.
Temperature rise current and saturation current is less influenced by environment.
Operating temperature: -25℃ ~125℃.
Placement formis SMD.
As one of the trusted inductor suppliers, we provide high-quality electronic component wholesale to meet customer's needs.

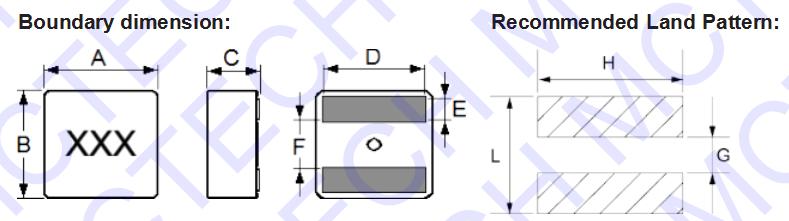

| series size | A | B | C | D | E | F | G | H | L |
| TSB0420 | 4.1±0.2 | 4.1±0.2 | 2.15max | 3.4ref | 0.88±0.3 | 1.6±0.3 | 1.4 ref | 3.8 ref | 3.4 ref |
| TSB0430 | 4.1±0.25 | 4.1±0.25 | 3.1max | 3.4ref | 0.88±0.3 | 1.6±0.3 | 1.4 ref | 3.8 ref | 3.4 ref |
| TSB0520 | 5.5±0.2 | 5.3±0.2 | 2.15max | 4.3ref | 1.1±0.3 | 2.3±0.3 | 2.0 ref | 4.7 ref | 4.5 ref |
| TSB0530 | 5.5±0.2 | 5.3±0.2 | 3.1max | 4.3ref | 1.1±0.3 | 2.3±0.3 | 2.0 ref | 4.7 ref | 4.5 ref |
| TSB0550 | 5.5±0.2 | 5.3±0.2 | 5.0max | 4.3ref | 1.1±0.3 | 2.3±0.3 | 2.0 ref | 4.7 ref | 4.5 ref |
| TSB0630 | 6.6±0.2 | 6.4±0.2 | 3.1max | 5.3ref | 1.4±0.3 | 2.6±0.3 | 2.5 ref | 5.6 ref | 5.6 ref |
| TSB0650 | 6.6±0.2 | 6.4±0.2 | 5.0max | 5.3ref | 1.4±0.3 | 2.6±0.3 | 2.5 ref | 5.6 ref | 5.6 ref |
| TSB0660 | 6.6±0.2 | 6.4±0.2 | 6.0max | 5.3ref | 1.4±0.3 | 2.6±0.3 | 2.5 ref | 5.6 ref | 5.6 ref |
| TSB0730 | 7.8±0.25 | 7.6±0.2 | 3.1max | 6.5ref | 1.75±0.3 | 3.15±0.3 | 2.8 ref | 7.2 ref | 7.4 ref |
| TSB0770 | 7.8±0.25 | 7.6±0.2 | 7.0max | 6.5ref | 1.75±0.3 | 3.15±0.3 | 2.8 ref | 7.2 ref | 7.4 ref |
| TSB1010 | 11.9±0.3 | 11.0±0.3 | 10.0max | 9.0ref | 2.4±0.2 | 6.6±0.3 | 3.7 ref | 11.0 ref | 10.5 ref |
| TSB1508 | 16.5±0.3 | 15.5±0.3 | 8.0max | 13.2ref | 3.2±0.3 | 7.4±0.5 | 6.0 ref | 15.0 ref | 15 ref |
| TSB1510 | 16.5±0.3 | 15.5±0.3 | 10.0max | 13.2ref | 3.2±0.3 | 7.4±0.5 | 6.0 ref | 15.0 ref | 15 ref |

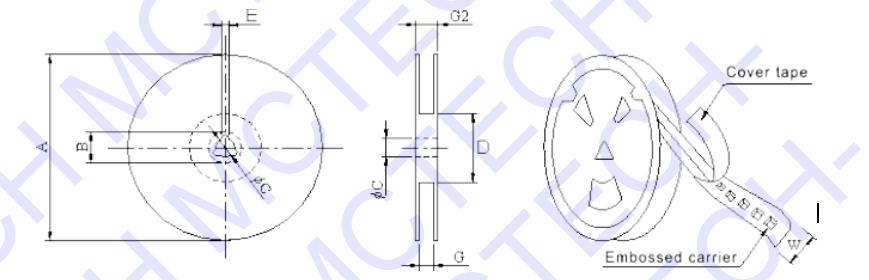

| Series | A(Ref.) | B(Ref.) | C(Ref.) | D(Ref.) | E(Ref.) | G(Ref.) | G2(Ref.) |
| 13''(330mm) | 330±1 | 20±0.8 | 13±0.5 | 100±1 | 2.0±0.5 | W+0.5 | W+4 |

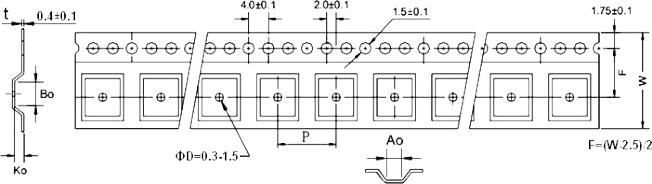

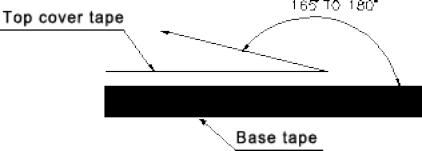

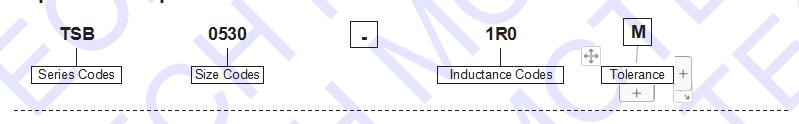

| Series | QTY (Pcs/Reel) | Ao | Bo | Ko | W | P |
| TSB0420 | 3000 Ref. | 4.4 | 4.4 | 2.3 | 12.0 | 8.0 |
| TSB0430 | 2000 Ref. | 4.4 | 4.4 | 3.3 | 12.0 | 8.0 |
| TSB0520 | 3000 Ref. | 6.0 | 5.8 | 2.3 | 12.0 | 8.0 |
| TSB0530 | 2000 Ref. | 6.0 | 5.8 | 3.3 | 16.0 | 8.0 |
| TSB0550 | 1500 Ref. | 6.0 | 5.8 | 5.3 | 16.0 | 8.0 |
| TSB0630 | 1000 Ref. | 7.0 | 6.8 | 3.3 | 16.0 | 12.0 |
| TSB0650 | 800 Ref. | 7.0 | 6.8 | 5.3 | 16.0 | 12.0 |
| TSB0660 | 750 Ref. | 7.0 | 6.8 | 6.3 | 16.0 | 12.0 |
| TSB0730 | 1500 Ref. | 8.2 | 8.0 | 3.3 | 16.0 | 12.0 |
| TSB0770 | 700 Ref. | 8.2 | 8.0 | 7.3 | 16.0 | 12.0 |
| TSB1010 | 300 Ref. | 12.4 | 11.5 | 10.3 | 24.0 | 16.0 |
| TSB1508 | 200 Ref. | 17.0 | 16.0 | 8.5 | 32.0 | 24.0 |
| TSB1510 | 150 Ref. | 17.0 | 16.0 | 10.5 | 32.0 | 24.0 |
| Part No. | Lo(0A) (µH)±20% | Irms(A) Type. | Isat(A) Type. | DCR(mΩ) Type. | DCR(mΩ) Max. | |
| TSB0420-R10M | 0.10 | 18.00 | 33.00 | 2.09 | 2.40 |
|
| TSB0420-R22M | 0.22 | 16.80 | 18.80 | 4.00 | 4.60 |
|
| TSB0420-R36M | 0.36 | 14.50 | 15.00 | 5.48 | 6.30 |
|
| TSB0420-R40M | 0.40 | 14.00 | 13.50 | 6.70 | 7.70 |
|
| TSB0420-R47M | 0.47 | 12.50 | 13.00 | 7.48 | 8.60 |
|
| TSB0420-R56M | 0.56 | 12.00 | 12.60 | 8.09 | 9.30 |
|
| TSB0420-R60M | 0.60 | 11.70 | 12.30 | 8.26 | 9.50 |
|
| TSB0420-R72M | 0.72 | 10.50 | 10.60 | 10.09 | 11.60 |
|
| TSB0420-1R0M | 1.00 | 9.60 | 8.80 | 12.70 | 14.60 |
|
| TSB0420-1R2M | 1.20 | 9.00 | 7.80 | 15.57 | 17.90 |
|
| TSB0420-1R5M | 1.50 | 7.60 | 7.40 | 20.43 | 23.50 |
|
| TSB0420-1R8M | 1.80 | 7.00 | 7.00 | 24.35 | 28.00 |
|
| TSB0420-2R2M | 2.20 | 5.60 | 6.00 | 33.65 | 38.70 |
|
| TSB0430-R33M | 0.33 | 15.00 | 19.00 | 5.91 | 6.80 |
|
| TSB0430-R47M | 0.47 | 14.00 | 17.00 | 6.31 | 7.26 |
|
| TSB0430-R75M | 0.75 | 10.00 | 9.00 | 9.39 | 10.80 |
|
| TSB0430-1R0M | 1.00 | 10.00 | 8.50 | 11.10 | 12.76 |
|
| TSB0430-1R8M | 1.80 | 7.50 | 6.80 | 15.22 | 17.50 |
|
| TSB0430-2R2M | 2.20 | 7.20 | 7.00 | 18.09 | 20.80 |
|
| TSB0430-3R3M | 3.30 | 6.60 | 5.50 | 24.87 | 28.60 |
|
| TSB0430-4R7M | 4.70 | 5.10 | 4.50 | 38.35 | 44.10 |
|
| TSB0430-6R8M | 6.80 | 3.90 | 3.60 | 64.43 | 74.10 |
|
| TSB0520-R15M | 0.15 | 18.80 | 27.00 | 4.00 | 4.60 |
|
| TSB0520-R16M | 0.16 | 18.80 | 27.00 | 4.00 | 4.60 |
|
| TSB0520-R33M | 0.33 | 14.40 | 24.00 | 6.09 | 7.00 |
|
| TSB0520-R47M | 0.47 | 14.10 | 20.00 | 7.04 | 8.10 |
|
| TSB0520-R56M | 0.56 | 13.90 | 16.00 | 8.26 | 9.50 |
|
| TSB0520-R68M | 0.68 | 13.40 | 14.00 | 8.87 | 10.20 |
|
| TSB0520-R80M | 0.80 | 13.00 | 13.50 | 10.26 | 11.80 |
|
| TSB0520-R82M | 0.82 | 12.00 | 13.00 | 11.04 | 12.70 |
|
| TSB0520-1R0M | 1.00 | 10.50 | 12.80 | 12.00 | 13.80 |
|
| TSB0520-1R2M | 1.20 | 9.40 | 12.20 | 14.17 | 16.30 |
|
| TSB0520-1R5M | 1.50 | 8.80 | 11.70 | 16.26 | 18.70 |
|
| TSB0530-R15M | 0.15 | 22.20 | 32.50 | 2.01 | 2.31 |
|
| TSB0530-R16M | 0.16 | 22.20 | 32.00 | 2.03 | 2.33 |
|
| TSB0530-R33M | 0.33 | 19.20 | 26.00 | 3.06 | 3.52 |
|
| TSB0530-R47M | 0.47 | 18.40 | 24.00 | 3.59 | 4.13 |
|
| TSB0530-R56M | 0.56 | 17.70 | 20.20 | 3.93 | 4.52 |
|
| TSB0530-R60M | 0.60 | 17.70 | 20.00 | 3.93 | 4.52 |
|
| TSB0530-R80M | 0.80 | 13.10 | 18.00 | 4.91 | 5.65 |
|
| TSB0530-R82M | 0.82 | 12.90 | 17.60 | 5.03 | 5.78 |
|
| TSB0530-1R0M | 1.00 | 12.20 | 14.30 | 6.61 | 7.60 |
|
| TSB0530-1R2M | 1.20 | 11.00 | 13.50 | 8.43 | 9.70 |
|
| TSB0530-1R5M | 1.50 | 10.50 | 12.50 | 9.74 | 11.20 |
|
| TSB0530-1R8M | 1.80 | 10.10 | 11.30 | 11.04 | 12.70 |
|
| TSB0530-2R2M | 2.20 | 9.70 | 9.00 | 12.61 | 14.50 |
|
| TSB0530-3R3M | 3.30 | 8.10 | 8.70 | 20.09 | 23.10 |
|
| TSB0530-4R7M | 4.70 | 5.90 | 7.00 | 31.57 | 36.30 |
|
| Part No. | Lo(0A) (µH)±20% | Irms(A) Type. | Isat(A) Type. | DCR(mΩ) Type. | DCR(mΩ) Max. | |
| TSB0550-5R6M | 5.60 | 7.20 | 7.20 | 21.04 | 24.20 |
|
| TSB0550-6R8M | 6.80 | 6.40 | 6.60 | 24.87 | 28.60 |
|
| TSB0550-8R2M | 8.20 | 6.10 | 6.10 | 28.26 | 32.50 |
|
| TSB0550-100M | 10.00 | 5.00 | 5.40 | 37.39 | 43.00 |
|
| TSB0630-R18M | 0.18 | 32.00 | 39.00 | 1.52 | 1.75 |
|
| TSB0630-R33M | 0.33 | 25.00 | 30.00 | 2.17 | 2.50 |
|
| TSB0630-R56M | 0.56 | 22.00 | 29.00 | 2.88 | 3.31 |
|
| TSB0630-R68M | 0.68 | 20.00 | 25.00 | 4.50 | 5.17 |
|
| TSB0630-1R0M | 1.00 | 18.00 | 23.00 | 5.26 | 6.05 |
|
| TSB0630-1R2M | 1.20 | 16.00 | 22.00 | 6.43 | 7.40 |
|
| TSB0630-1R5M | 1.50 | 15.00 | 20.00 | 7.94 | 9.13 |
|
| TSB0630-1R8M | 1.80 | 14.00 | 18.20 | 8.87 | 10.20 |
|
| TSB0630-2R2M | 2.20 | 10.00 | 15.90 | 10.61 | 12.20 |
|
| TSB0630-3R3M | 3.30 | 8.00 | 12.20 | 18.09 | 20.80 |
|
| TSB0630-4R5M | 4.50 | 7.00 | 10.00 | 22.00 | 25.30 |
|
| TSB0630-4R7M | 4.70 | 6.00 | 9.00 | 22.61 | 26.00 |
|
| TSB0650-R82M | 0.82 | 21.00 | 20.00 | 3.63 | 4.18 |
|
| TSB0650-1R0M | 1.00 | 20.00 | 18.00 | 3.93 | 4.52 |
|
| TSB0650-1R2M | 1.20 | 18.00 | 16.00 | 5.07 | 5.83 |
|
| TSB0650-1R5M | 1.50 | 17.00 | 14.50 | 5.48 | 6.30 |
|
| TSB0650-1R8M | 1.80 | 16.00 | 13.50 | 6.17 | 7.10 |
|
| TSB0650-2R2M | 2.20 | 13.00 | 12.00 | 7.39 | 8.50 |
|
| TSB0650-3R3M | 3.30 | 11.00 | 10.00 | 10.87 | 12.50 |
|
| TSB0650-4R3M | 4.30 | 9.00 | 8.50 | 14.09 | 16.20 |
|
| TSB0650-4R7M | 4.70 | 8.50 | 8.00 | 16.00 | 18.40 |
|
| TSB0650-5R6M | 5.60 | 7.00 | 8.30 | 19.13 | 22.00 |
|
| TSB0650-6R8M | 6.80 | 6.60 | 7.00 | 22.09 | 25.40 |
|
| TSB0650-8R2M | 8.20 | 6.20 | 6.80 | 27.39 | 31.50 |
|
| TSB0660-4R7M | 4.70 | 11.00 | 10.50 | 12.52 | 14.40 |
|
| TSB0660-5R6M | 5.60 | 10.00 | 9.90 | 13.83 | 15.90 |
|
| TSB0660-6R8M | 6.80 | 9.00 | 9.20 | 18.09 | 20.80 |
|
| TSB0660-8R2M | 8.20 | 8.00 | 8.40 | 22.96 | 26.40 |
|
| TSB0660-100M | 10.00 | 7.00 | 7.60 | 25.91 | 29.80 |
|
| TSB0660-150M | 15.00 | 6.00 | 5.80 | 38.09 | 43.80 |
|
| TSB0660-220M | 22.00 | 5.00 | 5.60 | 52.70 | 60.60 |
|
| TSB0730-1R0M | 1.00 | 21.80 | 28.00 | 4.35 | 5.00 |
|
| TSB0730-1R5M | 1.50 | 15.30 | 23.50 | 7.17 | 8.25 |
|
| TSB0730-2R2M | 2.20 | 13.00 | 17.00 | 11.91 | 13.70 |
|
| TSB0730-2R7M | 2.70 | 11.40 | 13.50 | 13.39 | 15.40 |
|
| TSB0730-3R3M | 3.30 | 10.00 | 13.00 | 15.65 | 18.00 |
|
| TSB0730-4R7M | 4.70 | 9.00 | 12.20 | 23.22 | 26.70 |
|
| TSB0730-5R6M | 5.60 | 7.30 | 11.50 | 28.87 | 33.20 |
|
| TSB0730-6R8M | 6.80 | 6.80 | 11.00 | 36.96 | 42.50 |
|
| TSB0730-8R2M | 8.20 | 5.90 | 9.00 | 42.37 | 48.73 |
|
| TSB0770-3R3M | 3.30 | 15.10 | 19.40 | 8.19 | 9.42 |
|
| TSB0770-4R7M | 4.70 | 13.60 | 15.20 | 12.40 | 14.26 |
|
| TSB0770-6R8M | 6.80 | 9.20 | 12.80 | 17.04 | 19.60 |
|
| Part No. | Lo(0A) (µH)±20% | Irms(A) Type. | Isat(A) Type. | DCR(mΩ) Type. | DCR(mΩ) Max. | |
| TSB1010-1R0M | 1.00 | 40.00 | 50.00 | 1.04 | 1.20 |
|
| TSB1010-2R2M | 2.20 | 32.00 | 34.00 | 2.43 | 2.80 |
|
| TSB1010-3R3M | 3.30 | 25.00 | 27.40 | 3.57 | 4.10 |
|
| TSB1010-4R7M | 4.70 | 24.00 | 25.40 | 4.96 | 5.70 |
|
| TSB1010-5R6M | 5.60 | 21.20 | 23.60 | 6.26 | 7.20 |
|
| TSB1010-6R8M | 6.80 | 18.50 | 21.80 | 7.74 | 8.90 |
|
| TSB1010-8R2M | 8.20 | 17.10 | 18.30 | 10.78 | 12.40 |
|
| TSB1010-100M | 10.00 | 15.50 | 17.50 | 11.96 | 13.75 |
|
| TSB1010-150M | 15.00 | 13.80 | 15.50 | 16.78 | 19.30 |
|
| TSB1508-2R0M | 2.00 | 40.00 | 52.00 | 1.92 | 2.21 |
|
| TSB1508-2R2M | 2.20 | 37.00 | 49.00 | 2.16 | 2.48 |
|
| TSB1508-3R0M | 3.00 | 34.50 | 41.00 | 2.61 | 3.00 |
|
| TSB1508-4R2M | 4.20 | 27.00 | 33.00 | 4.07 | 4.68 |
|
| TSB1508-4R7M | 4.70 | 26.50 | 32.00 | 4.49 | 5.16 |
|
| TSB1508-5R3M | 5.30 | 26.00 | 31.00 | 4.64 | 5.34 |
|
| TSB1508-6R2M | 6.20 | 23.00 | 31.00 | 5.65 | 6.50 |
|
| TSB1508-7R2M | 7.20 | 21.00 | 29.00 | 6.26 | 7.20 |
|
| TSB1508-8R2M | 8.20 | 19.00 | 25.00 | 6.89 | 7.92 |
|
| TSB1510-4R7M | 4.70 | 29.00 | 39.00 | 3.30 | 3.80 |
|
| TSB1510-5R6M | 5.60 | 28.00 | 37.00 | 3.65 | 4.20 |
|
| TSB1510-6R8M | 6.80 | 26.00 | 36.00 | 4.00 | 4.60 |
|
| TSB1510-8R2M | 8.20 | 24.00 | 30.00 | 6.26 | 7.20 |
|
| TSB1510-100M | 10.00 | 22.00 | 26.50 | 7.48 | 8.60 |
|
| TSB1510-150M | 15.00 | 18.00 | 23.00 | 10.00 | 11.50 |
|
| TSB1510-220M | 22.00 | 14.00 | 18.70 | 13.74 | 15.80 |
|
| TSB1510-330M | 33.00 | 12.00 | 16.70 | 17.39 | 20.00 |
|
