Height: 8mm Max.
Footprint: 15.5*11mm Max.
Current Rating: up to 50Apk.
Inductance Component Range: 0.14μH to 2.25μH.
As one of the trusted inductor suppliers, we provide high-quality electronic component wholesale to meet customer's needs.

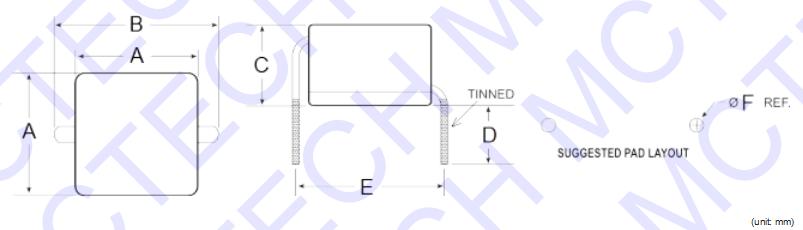

| Series Size | A | B | C | D | E | F |
| DS4280 | 11.0 Max | 15.5 Max | 8.0 Max | 3.2 ±0.5 | 12.7 ±0.5 | 1.6 Ref. |
| PART NO. | L(0A)(uH)(±20%) | Irms(A)(Typ.) | Isat(A)(Typ.) | DCR(mΩ )(Typ.) | DCR(mΩ)Max. | |
| DS4280-R28M | 0.28 | 38.7 | 45 | 0.7 | 0.8 |
|
