Features:
Lead-free materials is used for the plating on the terminals.
The product uses metal terminals,which realize excellent connection reliability.
High resistance to heat, humidity, mechanical shocks and presser.
Accurate dimensions for automatically surface mounted.
The custom inductor has good heat durability that withstands lead-free compatible reflow soldering conditions.
Applications:
EM serials high reliable wire would chip inductors for communication, equipment, instrument, video & audio have been developen in response to the trend toward higher density mounting of parts in electric circuits.
As a trusted inductor manufacturer, we provide high-quality electronic component wholesale to meet customer's needs.

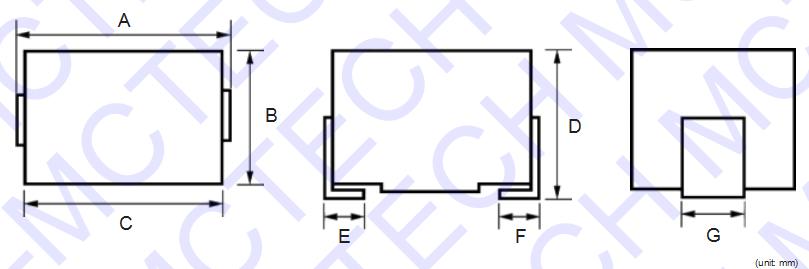

| Series size | A | B | C | D | E | F | G |
| ASPL4532 | 4.5±0.4 | 3.2±0.2 | 4.2±0.3 | 3.2±0.2 | 1.0±0.2 | 1.0±0.2 | 1.1±0.2 |
| ASPL3225 | 3.2±0.4 | 2.5±0.2 | 2.9±0.3 | 2.2±0.2 | 0.6±0.2 | 0.6±0.2 | 1.0±0.2 |

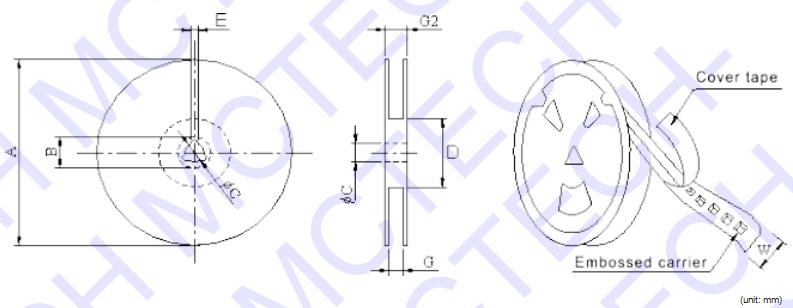

| Series | TYPE | A(Ref.) | B(Ref.) | C(Ref.) | D(Ref.) | E(Ref.) | G(Ref.) | G2(Ref.) | W(Ref.) |
| ASPL4532 | 7″ | 178 | 21 | 13 | 50Min | 2.0±5 | 14Max | 18.4Max | 12 |
| ASPL3225 | 7″ | 178 | 21 | 13 | 50Min | 2.0±5 | 10Max | 14.4Max | 8 |

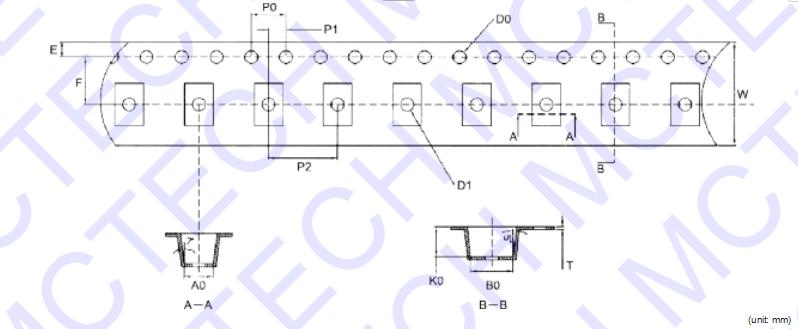

| Series | QTY(Pcs/Reel) | E | F | P1 | D0 | D1 | P0 | W | P2 | A0 | B0 | K0 | T |
| ASPL4532 | 500 | 1.75 | 5.50 | 2.0 | 1.5 | 1.0 | 4.0 | 12.0 | 8.0 | 3.31 | 4.95 | 3.50 | 0.35 |
| ASPL3225 | 2000 | 1.75 | 3.5 | 2.0 | 1.5 | 1.0 | 4.0 | 8.0 | 4.0 | 2.88 | 3.65 | 2.50 | 0.26 |
| PART NO. | Inductance (µH) | Q min. | Test frequency L, Q (MHz) | Self-resonant frequency(MHz)min. | DCR (Ω)max. | Rated current (mA)max. | |
| ASPL4532-R10M | 0.1±20% | 35 | 25.2 | 300 | 0.18 | 800 |
|
| ASPL4532-R12M | 0.12±20% | 35 | 25.2 | 280 | 0.2 | 770 |
|
| ASPL4532-R15M | 0.15±20% | 35 | 25.2 | 250 | 0.22 | 730 |
|
| ASPL4532-R18M | 0.18±20% | 35 | 25.2 | 220 | 0.24 | 700 |
|
| ASPL4532-R22M | 0.22±20% | 40 | 25.2 | 200 | 0.25 | 665 |
|
| ASPL4532-R27M | 0.27±20% | 40 | 25.2 | 180 | 0.26 | 635 |
|
| ASPL4532-R33M | 0.33±20% | 40 | 25.2 | 165 | 0.28 | 605 |
|
| ASPL4532-R39M | 0.39±20% | 40 | 25.2 | 150 | 0.3 | 575 |
|
| ASPL4532-R47M | 0.47±20% | 40 | 25.2 | 145 | 0.32 | 545 |
|
| ASPL4532-R56M | 0.56±20% | 40 | 25.2 | 140 | 0.36 | 520 |
|
| ASPL4532-R68M | 0.68±20% | 40 | 25.2 | 135 | 0.4 | 500 |
|
| ASPL4532-R82M | 0.82±20% | 40 | 25.2 | 130 | 0.45 | 475 |
|
| ASPL4532-1R0M | 1.0±20% | 50 | 7.96 | 100 | 0.5 | 450 |
|
| ASPL4532-1R2M | 1.2±20% | 50 | 7.96 | 80 | 0.55 | 430 |
|
| ASPL4532-1R5M | 1.5±20% | 50 | 7.96 | 70 | 0.6 | 410 |
|
| ASPL4532-1R8M | 1.8±20% | 50 | 7.96 | 60 | 0.65 | 390 |
|
| ASPL4532-2R2M | 2.2±20% | 50 | 7.96 | 55 | 0.7 | 380 |
|
| ASPL4532-2R7M | 2.7±20% | 50 | 7.96 | 50 | 0.75 | 370 |
|
| ASPL4532-3R3M | 3.3±20% | 50 | 7.96 | 45 | 0.8 | 355 |
|
| ASPL4532-3R9M | 3.9±20% | 50 | 7.96 | 40 | 0.9 | 330 |
|
| ASPL4532-4R7M | 4.7±20% | 50 | 7.96 | 35 | 1 | 315 |
|
| ASPL4532-5R6M | 5.6±20% | 50 | 7.96 | 33 | 1.1 | 300 |
|
| ASPL4532-6R8M | 6.8±20% | 50 | 7.96 | 27 | 1.2 | 285 |
|
| ASPL4532-8R2K | 8.2±10% | 50 | 7.96 | 25 | 1.4 | 270 |
|
| ASPL4532-100K | 10±20% | 50 | 2.52 | 20 | 1.6 | 250 |
|
| ASPL4532-120K | 12±20% | 50 | 2.52 | 18 | 2 | 225 |
|
| ASPL4532-150K | 15±20% | 50 | 2.52 | 17 | 2.5 | 200 |
|
| ASPL4532-180K | 18±20% | 50 | 2.52 | 15 | 2.8 | 190 |
|
| ASPL4532-220K | 22±20% | 50 | 2.52 | 13 | 3.2 | 180 |
|
| ASPL4532-270K | 27±20% | 50 | 2.52 | 12 | 3.6 | 170 |
|
| ASPL4532-330K | 33±20% | 50 | 2.52 | 11 | 4 | 160 |
|
| ASPL4532-390K | 39±20% | 50 | 2.52 | 10 | 4.5 | 150 |
|
| ASPL4532-470K | 47±20% | 50 | 2.52 | 10 | 5 | 140 |
|
| ASPL4532-560K | 56±20% | 50 | 2.52 | 9 | 5.5 | 135 |
|
| ASPL4532-680K | 68±20% | 50 | 2.52 | 9 | 6 | 130 |
|
| ASPL4532-820K | 82±20% | 50 | 2.52 | 8 | 7 | 120 |
|
| ASPL4532-101K | 100±20% | 40 | 0.796 | 8 | 8 | 110 |
|
| ASPL4532-121K | 120±20% | 40 | 0.796 | 6 | 8 | 110 |
|
| ASPL4532-151K | 150±20% | 40 | 0.796 | 5 | 9 | 105 |
|
| ASPL4532-181K | 180±20% | 40 | 0.796 | 5 | 9.5 | 102 |
|
| ASPL4532-221K | 220±20% | 40 | 0.796 | 4 | 10 | 100 |
|
| ASPL4532-271K | 270±20% | 40 | 0.796 | 4 | 12 | 92 |
|
| ASPL4532-331K | 330±20% | 40 | 0.796 | 3.5 | 14 | 85 |
|
| ASPL4532-391K | 390±20% | 40 | 0.796 | 3 | 18 | 80 |
|
| ASPL4532-471K | 470±20% | 40 | 0.796 | 3 | 26 | 62 |
|
| ASPL4532-561K | 560±20% | 30 | 0.796 | 3 | 30 | 50 |
|
| ASPL4532-681K | 680±20% | 30 | 0.796 | 3 | 30 | 50 |
|
| ASPL4532-821K | 820±20% | 30 | 0.796 | 2.5 | 35 | 30 |
|
| ASPL4532-102K | 1000±20% | 20 | 0.252 | 2.5 | 40 | 30 |
|
| PART NO. | Inductance (µH) | Q min. | Test frequency L,Q (MHz) | Self-resonant frequency(MHz)min. | DCR (Ω)max. | Rated current (mA)max. | |
| ASPL3225-R10M | 0.1±20% | 28 | 100 | 700 | 0.44 | 450 |
|
| ASPL3225-R12M | 0.12±20% | 30 | 25.2 | 500 | 0.22 | 450 |
|
| ASPL3225-R15M | 0.15±20% | 30 | 25.2 | 450 | 0.25 | 450 |
|
| ASPL3225-R18M | 0.18±20% | 30 | 25.2 | 400 | 0.28 | 450 |
|
| ASPL3225-R22M | 0.22±20% | 30 | 25.2 | 350 | 0.32 | 450 |
|
| ASPL3225-R27M | 0.27±20% | 30 | 25.2 | 320 | 0.36 | 450 |
|
| ASPL3225-R33M | 0.33±20% | 30 | 25.2 | 300 | 0.40 | 450 |
|
| ASPL3225-R39M | 0.39±20% | 30 | 25.2 | 250 | 0.45 | 450 |
|
| ASPL3225-R47M | 0.47±20% | 30 | 25.2 | 220 | 0.50 | 450 |
|
| ASPL3225-R56M | 0.56±20% | 30 | 25.2 | 180 | 0.55 | 450 |
|
| ASPL3225-R68M | 0.68±20% | 30 | 25.2 | 160 | 0.60 | 450 |
|
| ASPL3225-R82M | 0.82±20% | 30 | 25.2 | 140 | 0.65 | 450 |
|
| ASPL3225-1R0K | 1±10% | 30 | 7.96 | 120 | 0.70 | 450 |
|
| ASPL3225-1R2K | 1.2±10% | 30 | 7.96 | 100 | 0.75 | 390 |
|
| ASPL3225-1R5K | 1.5±10% | 30 | 7.96 | 85 | 0.85 | 370 |
|
| ASPL3225-1R8K | 1.8±10% | 30 | 7.96 | 80 | 0.90 | 350 |
|
| ASPL3225-2R2K | 2.2±10% | 30 | 7.96 | 75 | 1.00 | 320 |
|
| ASPL3225-2R7K | 2.7±10% | 30 | 7.96 | 70 | 1.10 | 290 |
|
| ASPL3225-3R3K | 3.3±10% | 30 | 7.96 | 60 | 1.20 | 260 |
|
| ASPL3225-3R9K | 3.9±10% | 30 | 7.96 | 55 | 1.30 | 250 |
|
| ASPL3225-4R7K | 4.7±10% | 30 | 7.96 | 50 | 1.50 | 220 |
|
| ASPL3225-5R6K | 5.6±10% | 30 | 7.96 | 45 | 1.60 | 200 |
|
| ASPL3225-6R8K | 6.8±10% | 30 | 7.96 | 40 | 1.80 | 180 |
|
| ASPL3225-8R2K | 8.2±10% | 30 | 7.96 | 35 | 2.00 | 170 |
|
| ASPL3225-100K | 10±10% | 30 | 2.52 | 30 | 2.10 | 150 |
|
| ASPL3225-120K | 12±10% | 30 | 2.52 | 20 | 2.50 | 140 |
|
| ASPL3225-150K | 15±10% | 30 | 2.52 | 20 | 2.80 | 130 |
|
| ASPL3225-180K | 18±10% | 30 | 2.52 | 20 | 3.30 | 120 |
|
| ASPL3225-220K | 22±10% | 30 | 2.52 | 20 | 3.70 | 110 |
|
| ASPL3225-270K | 27±10% | 30 | 2.52 | 20 | 5.00 | 80 |
|
| ASPL3225-330K | 33±10% | 30 | 2.52 | 17 | 5.60 | 70 |
|
| ASPL3225-390K | 39±10% | 30 | 2.52 | 16 | 6.40 | 65 |
|
| ASPL3225-470K | 47±10% | 30 | 2.52 | 15 | 7.00 | 60 |
|
| ASPL3225-560K | 56±10% | 30 | 2.52 | 13 | 8.00 | 55 |
|
| ASPL3225-680K | 68±10% | 30 | 2.52 | 12 | 9.00 | 50 |
|
| ASPL3225-820K | 82±10% | 30 | 2.52 | 11 | 10.00 | 45 |
|
| ASPL3225-101K | 100±10% | 20 | 0.796 | 10 | 10.00 | 40 |
|
| ASPL3225-121K | 120±10% | 20 | 0.796 | 10 | 11.00 | 70 |
|
| ASPL3225-151K | 150±10% | 20 | 0.796 | 8 | 15.00 | 65 |
|
| ASPL3225-181K | 180±10% | 20 | 0.796 | 7 | 17.00 | 60 |
|
| ASPL3225-221K | 220±10% | 20 | 0.796 | 7 | 21.00 | 50 |
|
