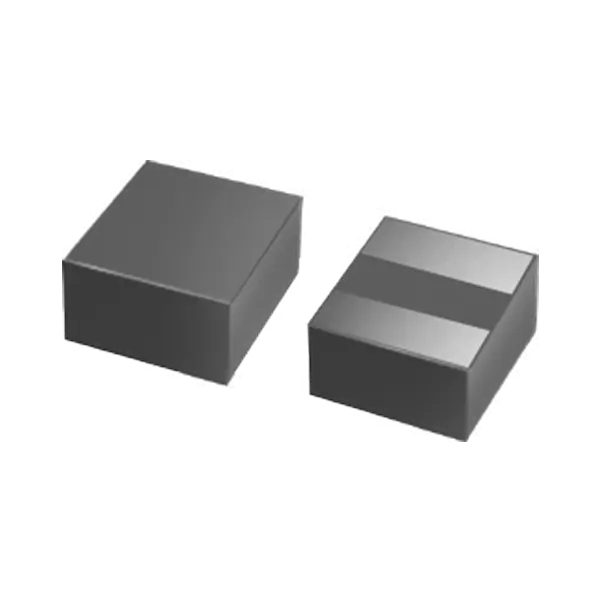

Halogen Free.
125℃ maximum total temperature operation.
Magnetically shielded, low EMI.
High current carrying capacity, Low magnetic core losses.
RoHS compliant.
Applications:
Voltage Regulator Module (VRM).
Multi-phase regulators.
Point-of-load modules.
Smart phone POL modules.
SSD modules.
Notebook regulators.
Battery power systems.
Graphics cards.
Data networking and storage systems.
DC/DC converter.
Cellular phones, LCD displays, HDDs.
Thin type on-board power supply module for exchanger.
As one of the trusted inductor suppliers, we provide high-quality electronic component wholesale to meet customer's needs.

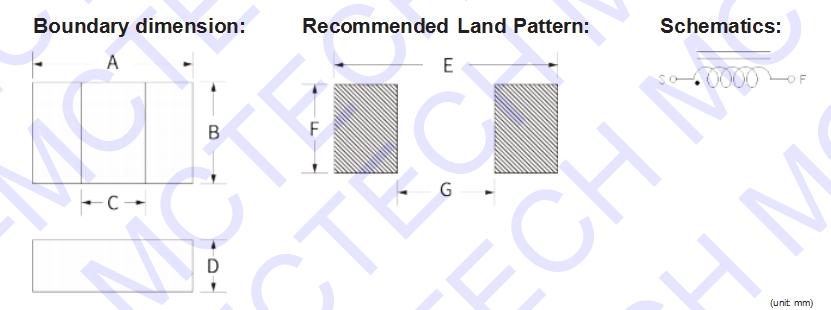

| Series | A | B | C | D | E | F | G |
| TSEA141208 | 1.4±0.2 | 1.2±0.2 | 0.53Typ. | 0.8Max | 1.5 | 1.3 | 0.43 |
| TSEA201610 | 2.0±0.2 | 1.6±0.2 | 0.6Typ. | 1.0Max | 0.5 | 1.6 | 2 |
| TSEA252012 | 2.5±0.2 | 2.0±0.2 | 0.7Typ. | 1.2Max | 2.6 | 2.1 | 0.6 |
| TSEA322512 | 3.2±0.2 | 2.5±0.2 | 1.7Typ. | 1.2Max | 3.7 | 2.8 | 1.8 |

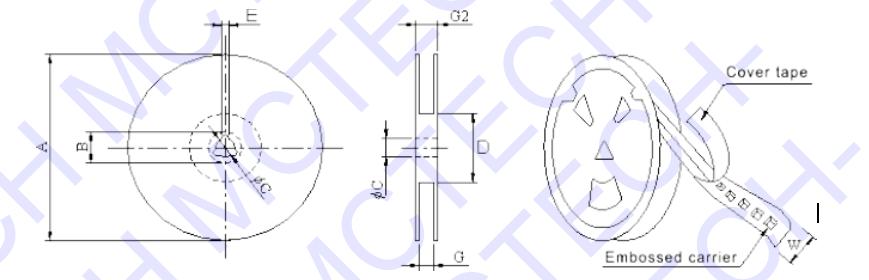

| Series | TYPE | A(Ref.) | B(Ref.) | C(Ref.) | D(Ref.) | E(Ref.) | G(Ref.) | G2(Ref.) |
| TSEA141208 | 178*8mm | 178±1 | 20±0.8 | 13±0.5 | 60±1 | 2.0±0.5 | 8.5±0.5 | 10.5±0.5 |
| TSEA201610 | 178*8mm | 178±1 | 20±0.8 | 13±0.5 | 60±1 | 2.0±0.5 | 8.5±0.5 | 10.5±0.6 |
| TSEA252012 | 178*8mm | 178±1 | 20±0.8 | 13±0.5 | 60±1 | 2.0±0.5 | 8.5±0.5 | 10.5±0.7 |
| TSEA322512 | 178*8mm | 178±1 | 20±0.8 | 13±0.5 | 60±1 | 2.0±0.5 | 8.5±0.5 | 10.5±0.8 |

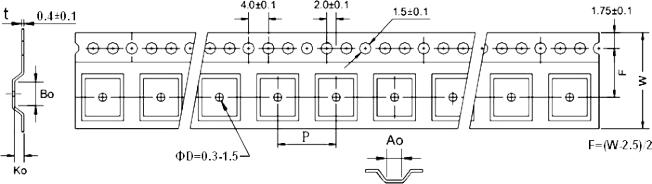

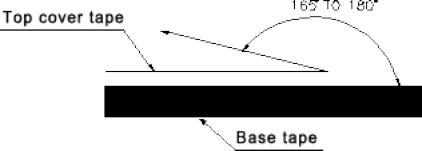

| Series | QTY(Pcs/Reel) | Ao | Bo | Ko | W | P |
| TSEA141208 | 3000 | 1.5±0.1 | 1.7±0.1 | 1.0±0.1 | 8 | 4 |
| TSEA201610 | 3000 | 1.9±0.1 | 2.3±0.1 | 1.2±0.1 | 8 | 4 |
| TSEA252012 | 3000 | 2.4±0.1 | 2.8±0.1 | 1.4±0.1 | 8 | 4 |
| TSEA322512 | 3000 | 2.9±0.1 | 3.5±0.1 | 1.4±0.1 | 8 | 4 |
| Part No. | L0(μH) ±20% | IDC(Amp) Max. | IDC(Amp) Typ. | Isat(Amp) Max. | Isat(Amp) Typ. | DCR(mΩ) Typ. | DCR(mΩ) Max. | |
| TSEA141208-R33M | 0.33 | 3.2 | 3.5 | 5 | 5.5 | 24.5 | 27.5 |
|
| TSEA141208-R47M | 0.47 | 3 | 3.2 | 4.5 | 4.8 | 28.5 | 34.5 |
|
| TSEA201610-R24M | 0.24 | 5.5 | 6.3 | 6.3 | 7.2 | 16 | 20 |
|
| TSEA201610-R33M | 0.33 | 4 | 4.7 | 5.5 | 6.1 | 21 | 26 |
|
| TSEA201610-R47M | 0.47 | 4.2 | 4.6 | 4.8 | 5.3 | 26 | 32 |
|
| TSEA201610-R68M | 0.68 | 3.7 | 4.2 | 3.8 | 4.2 | 36 | 43 |
|
| TSEA201610-1R0M | 1 | 2.7 | 3.3 | 3 | 3.5 | 48 | 57 |
|
| TSEA201610-2R2M | 2.2 | 1.9 | 2.1 | 2.1 | 2.3 | 115 | 138 |
|
| TSEA201610-4R7M | 4.7 | 1.1 | 1.3 | 1.6 | 1.8 | 240 | 288 |
|
| TSEA252012-R33M | 0.33 | 5.1 | 6 | 7.6 | 8.5 | 14 | 19 |
|
| TSEA252012-R47M | 0.47 | 5.5 | 6.1 | 6.7 | 7.3 | 17 | 21 |
|
| TSEA252012-R68M | 0.68 | 5 | 5.5 | 6 | 6.3 | 25 | 30 |
|
| TSEA252012-1R0M | 1 | 3.9 | 4.2 | 5 | 5.4 | 35 | 42 |
|
| TSEA252012-1R5M | 1.5 | 3.2 | 3.6 | 3.4 | 3.6 | 53 | 61 |
|
| TSEA252012-2R2M | 2.2 | 2.7 | 3 | 3 | 3.3 | 68 | 82 |
|
| TSEA252012-3R3M | 3.3 | 1.8 | 2.1 | 2.5 | 2.8 | 110 | 135 |
|
| TSEA252012-4R7M | 4.7 | 1.5 | 1.8 | 2.1 | 2.4 | 160 | 190 |
|
| TSEA322512-R47MS | 0.47 | 2.2 | 5.7 | 7 | 7.7 | 18 | 22 |
|
| TSEA322512-1R0MS | 1 | 3.9 | 4.3 | 4.7 | 5.4 | 28 | 34 |
|
| TSEA322512-2R2MS | 2.2 | 2.7 | 3 | 3.5 | 4 | 62 | 73 |
|
